Meanwell UHP-500 Series UHP-500-5 UHP-500-12 LED Displays Power Supply
Availability: Pre-Order
SKU: 1 pcs
Regular price
$90.00 USD
$100.00
Save
$10.00
(10% off)
Shipping calculated at checkout.
Model Number: UHP-500-5
Applicable To Brand Warranty Policy
GUARANTEED SAFE CHECKOUT
Spent $1,000.00 more for free shipping
Expected Delivery : - .
00
UHP-500-5 - $90.00
- UHP-500-5 - $90.00
- UHP-500-12 - $90.00
PRODUCT DETAILS

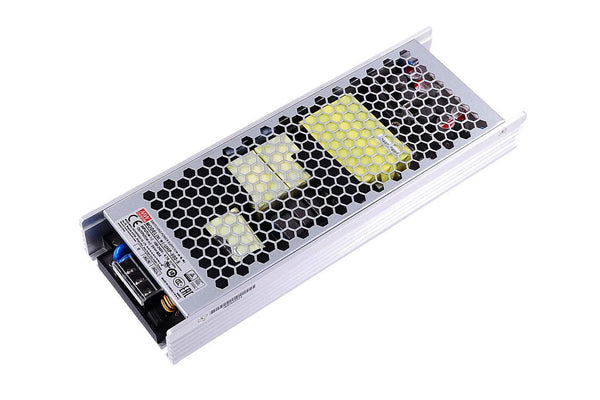

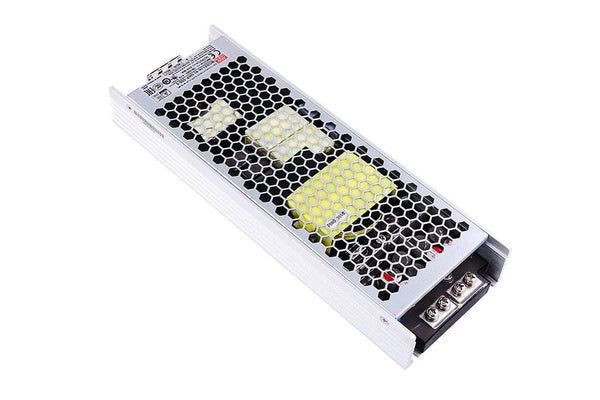

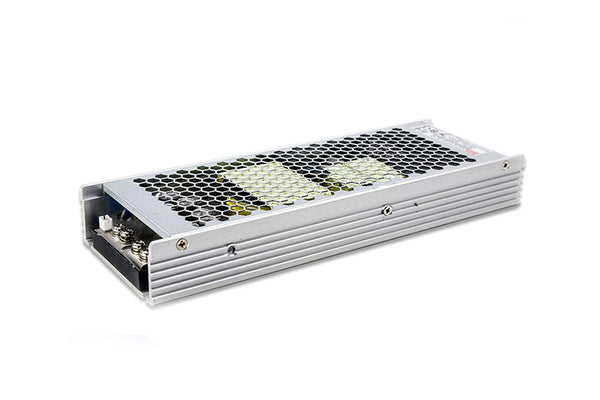

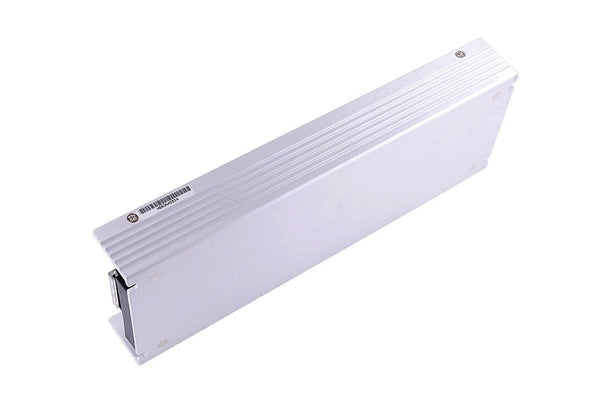

Meanwell UHP-500 Series LED Displays Power Supply
UHP-500 series is a 500W single-output slim type power supply with 31 mm of low profile design. Adopting the full range 90~264VAC input, the entire series provides an output voltage line of 4.2V, 5V, 12V, 15V, 24V, 36V, 48V and 55V. ln addition to the high efficiency up to 95%, that the whole series operates from -20°C ~70°C under air convection without fan. UHP-500 has the complete protection functions and 5G anti-vibration capability;lt is complied with the international safety regulations such as TUV EN62368-1, EN60335-1, UL 62368-1 and GB4943. UHP-500 series serves as a high performance power supply solution for various industrial applications.- Slim and Low profile(31mm)
- Fanless design, 500W convection
- Withstand 300VAC surge input for 5 seconds
- Built-in active PFC function
- -30~+70℃ working temperature
- Protections: Short circuit / Overload / Over voltage / Over temperature
- DC OK active signal and redundant function(option)
- Operating altitude up to 5000 meter(Note.5)
- LED indicator for power on
- 3 years warranty
Applications
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
LED display application
Power Source Equipment for PoE(55V model)
Meanwell UHP-500 Series LED Displays Power Supply Mechanical Specification
Industrial automation machinery
Industrial control system
Mechanical and electrical equipment
Electronic instruments, equipments or apparatus
Household appliances
LED display application
Power Source Equipment for PoE(55V model)
Meanwell UHP-500 Series LED Displays Power Supply Mechanical Specification
Meanwell UHP-500 Series LED Displays Power Supply Installation
Meanwell UHP-500 Series LED Displays Power Supply Specification
UHP-500
Meanwell UHP-500 LED Power Supply Specification
