Meanwell UHP-200 Series UHP-200-5 LED Displays Power Supply
Availability: Pre-Order
SKU: 1 pcs
Regular price
$44.00 USD
Shipping calculated at checkout.
Model Number: UHP-200-5
Applicable To Brand Warranty Policy
GUARANTEED SAFE CHECKOUT
Spent $1,000.00 more for free shipping
Expected Delivery : - .
0
UHP-200-5 - $44.00
- UHP-200-5 - $44.00
PRODUCT DETAILS

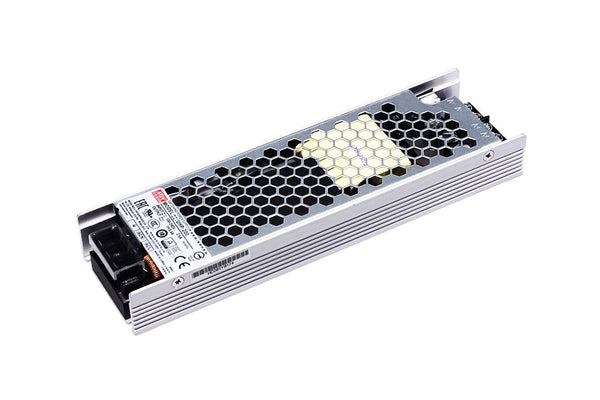

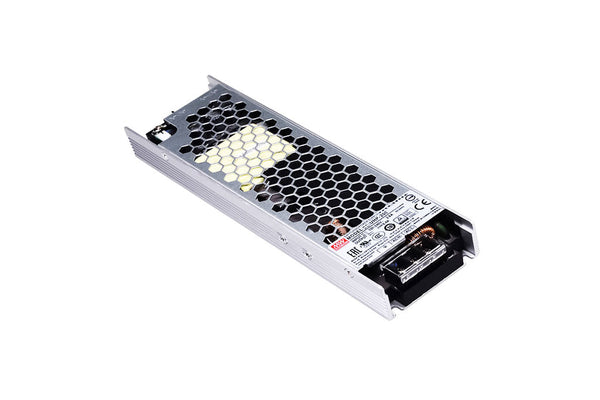

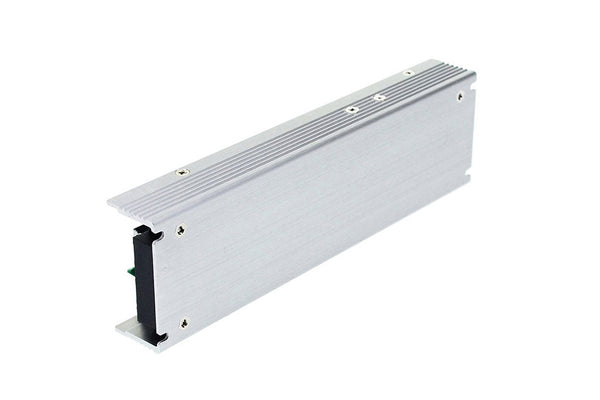

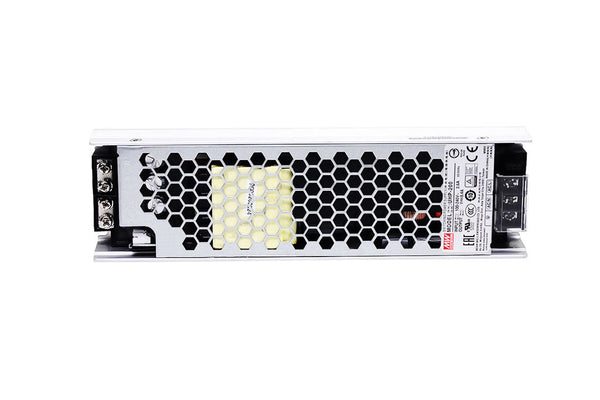

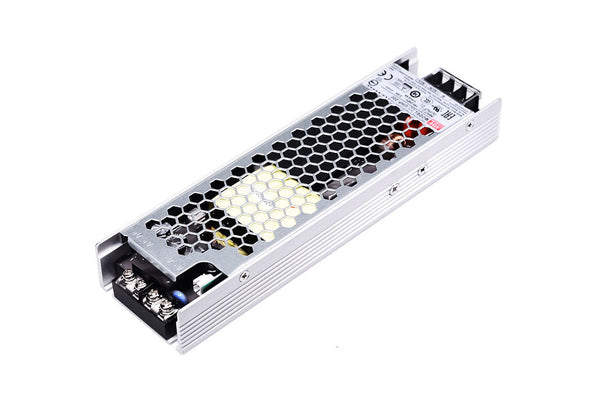

Meanwell UHP-200 Series LED Displays Power Supply
UHP-200 series is a 200W single-output slim type power supply with 26mm of low profile design.Adopting the full range 901264VAe input, the entire series provides an output voltage line of 3.3V,4.2V, 5V, 12V, 15V, 24V, 36V,48V and 55V . In addition to the high efficiency up to 94%, that the whole series operates from -30℃ ~ 70℃ under air convection without fan. UHP-200 has the complete protection functions and 5G anti-vibration capability;!! is complied with the international safety regulations such as TUV BS EN/EN62368-1 ,BS EN/EN60335-1 ,UL 62368-1 and GB4943. UHP-200 series serves as a high performance power supply solutio|n for various industrial applications.- Slim and Low profile(26mm)
- Fanless design, 200W convection
- Withstand 300VAC surge input for 5 seconds
- Built-in active PFC function
- -30~+70℃ working temperature
- Protections: Short circuit / Overload / Over voltage / Over temperature
- DC OK active signal and redundant function(option)
- Operating altitude up to 5000 meter(Note.5)
- LED indicator for power on
- 3 years warranty
Meanwell UHP-200A Series LED Displays Power Supply Mechanical Specification
Meanwell UHP-200A Series LED Displays Power Supply Installation
Meanwell UHP-200A Series LED Displays Power Supply Specification
Further Information:
UHP-200
Meanwell UHP-200 LED Power Supply Specification
