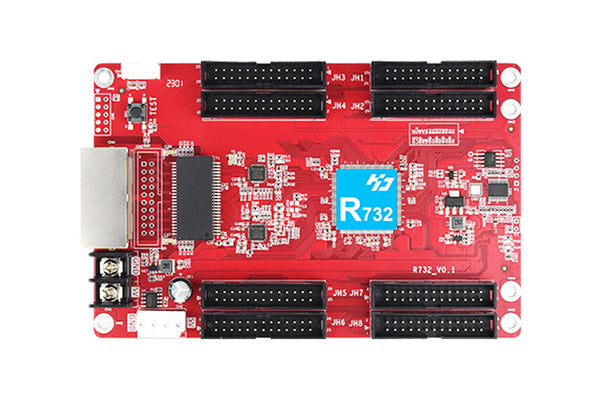

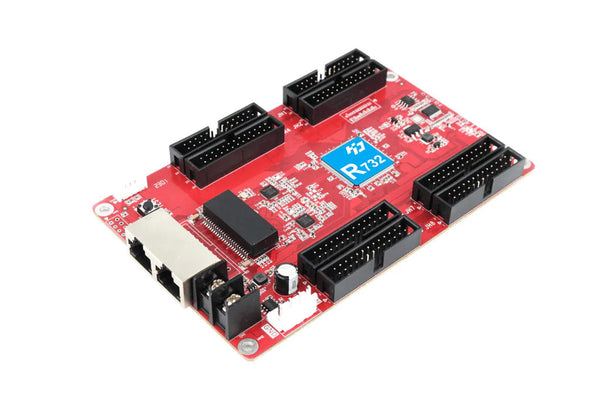

Huidu HUB320 LED Receiving Card HD-R732 LED Display Controller
Availability: Pre-Order
SKU: HD-R732
Regular price
$18.00 USD
$45.00
Save
$27.00
(60% off)
Shipping calculated at checkout.
Applicable To Brand Warranty Policy
GUARANTEED SAFE CHECKOUT
Spent $1,000.00 more for free shipping
Expected Delivery : - .
0
PRODUCT DETAILS
Fine Pixel Pitch LED Display Receiving Card HD-R732(R320T upgrade)
R732 is a receiving card used for fine pixel pitch LED screen, the maximum load capacity is 256*1024 pixels, it can use with asynchronous controller, synchronous controller and all-in-one video processor.
- Integrated with 8 lines HUB320 port
- Support regular chips and PWM chips
- Support static module, any scan mode within 2~128 scan
- Support data group exchange and data group offset setting
- Smart settings, draw points, trace points, etc.
- Support multi-card cascade, arbitrary order
- Recommended loading range: 128*512/ 128*768
| Function | Parameters |
| Fit for sender | Dual-mode Player box, Asynchronous controller,
Synchronous sending card, 3 in 1 Video processor |
| Module type | Compatible with all common IC module, supported most PWM IC module. |
| Scan mode | Supports any scanning method from static to 1/128 scan |
| Communication method | Gigabit Ethernet |
| Control range | Recommend：98,304 pixels (256*1024)
Recommend width pixel ≤128 |
| Multi-card connection | Receiving card can be put in any sequence |
| Gray scale | 256~65536 |
| Smart setting | A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board |
| Test functions | Receiving card integrated screen test function, Test display brightness uniformity and display module flatness. |
| Communication distance | Super Cat5,Cat6 network cable within 80 meters |
| Port | 5V DC Power*2,1Gbps Ethernet port*2, HUB320*8 |
| Input voltage | 4.2V-5.5V |
| Power | 5W |
