Colorlight I Series LED Display Controller E80 E120 E320 LED Receiving Card

In Stock
SKU: E80
Regular price $14.00 $25.00 | Save $11.00 (44% off)
/
Shipping calculated at checkout.

Featured text for product

You have got FREE SHIPPING

Expected Delivery : - .

1000100

Colorlight I Series LED Display Controller E80 E120 E320 LED Receiving Card

E80 - $14.00
  • E80 - $14.00
  • E120 - $19.00
  • E320 - $21.00

PRODUCT DETAILS

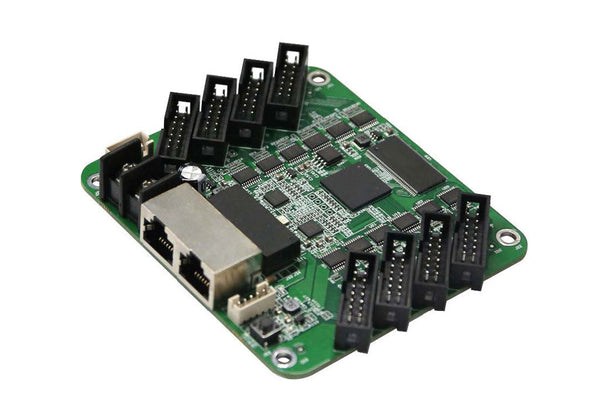

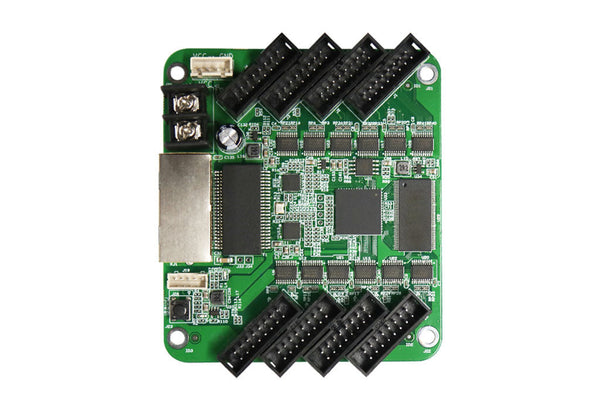

E80 LED Receiving Card

The E80 receiver card is a cost-effective product launched by Carlite to better help customers save costs, reduce failure points and lower failure rate. Based on the full use of the technical advantages of the universal receiver card, the HUB75 adapter board, which is the most common in the market, is integrated into the receiver card, which is more reliable, more trouble-free and more affordable on the premise of guaranteeing high quality display effect.
  • With the integration of HUB75, there is no need for an adapter board, which is more convenient and less costly.
  • Fewer pluggable connections, fewer points of failure and lower failure rates.
  • Support conventional chips to achieve high refresh, high grayscale and high brightness.
  • Better detailing to eliminate darkening of a row, reddish low gray, ghosting, etc. caused by the design of the unit panel.
  • Support high-precision integrated point-by-point correction of chromaticity and brightness.
  • Support for all conventional chips, PWM chips and lighting chips.
  • Support static screen, any scan type between 2 and 64 sweeps.
  • Support arbitrary sampling, support for data offset, can easily implement a variety of shaped screen, spherical screen, creative display.
  • Single card supports 16 groups of RGB signal output.
  • (a) Support for a large carrying area.
  • Support DC 3.3V~6V ultra-wide operating voltage.
  • Supports the full range of Carlite sending devices

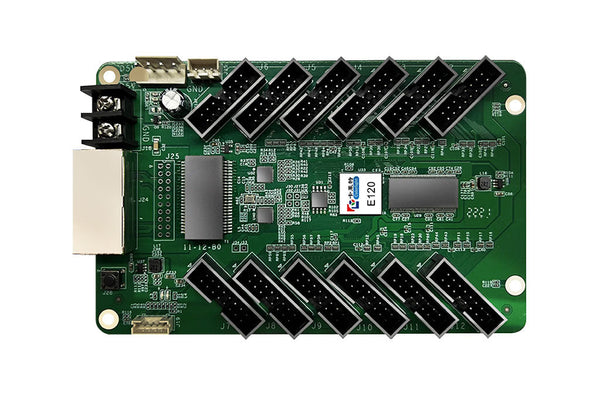

E120 LED Receiving Card

E120 receiving card is a cost-effective product specially launched by Colorlight to help customers save costs, reduce failure points and reduce failure rate. A single card can load up to 192x1024 pixels and support up to 24 sets of parallel data or 32 sets of serial data. On the basis of making full use of the technical advantages of mainstream receiving cards, the most common HUB75 adapter board on the market is integrated into the receiving card, which is more reliable, more worry-free and more affordable on the premise of ensuring high-quality display effects.
  • Support 8bit video source input
  • Supports color temperature adjustment
  • •Support low light and high gray
  • Supports integrated point-by-point correction of brightness and chroma
  • Support calibration sequence
  • Support screen rotation
  • Support data group offset
  • Support arbitrary row, column, and point sampling
  • Supports quick firmware upgrade and quick release of correction coefficients
  • Support loop backup
  • Support network cable status monitoring
  • Support firmware program backup and readback
  • Support 7X24h uninterrupted work

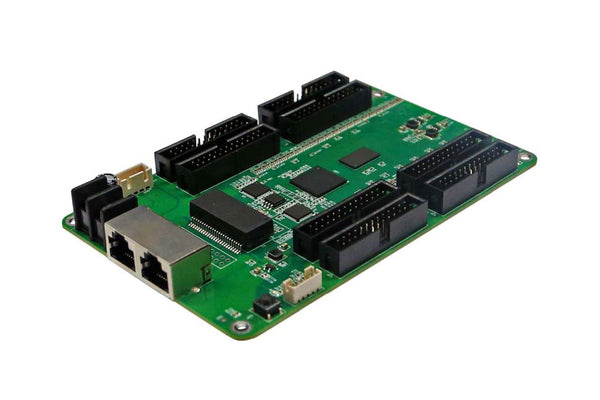

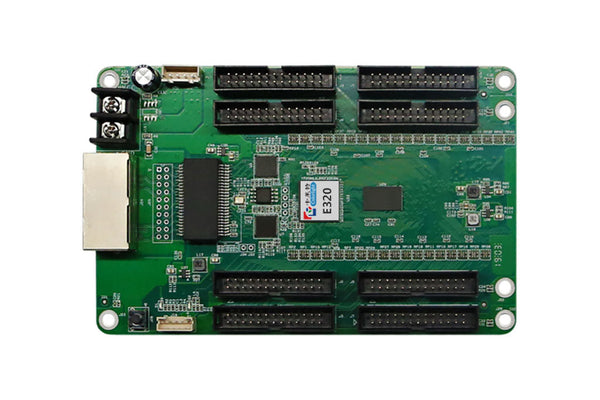

E320 LED Receiving Card

The E320 receiver card, is a cost-effective product launched by Carlite to better help customers save costs and reduce failure points, E320 has the functions of the current mainstream receiver card, but also for the development of a series of high-end display screen practical and powerful features, to bring customers value-added point, enhance the added value of the product.
  • Single card supports 32 groups of RGB signal parallel output
  • Max. 512*384 dots per card
  • Support chroma and brightness integrated point-by-point correction
  • Supports low light and high gray and color temperature adjustment
  • Support for sewing technology
  • Support arbitrary row, column and dot draws
  • Fast upgrade and fast delivery of correction factors
  • Network cable detection support
  • Support any scan type between 1~1/64 sweeps, support 595 and other serial decoding scans.
  • Support arbitrary sampling, support for data offset, can easily realize the shaped screen, spherical screen and other creative displays
  • Support DC 3.3V~6V ultra-wide operating voltage.
  • Supports the full range of Carlite sending devices
