Huidu 50PIN LED Receiving Card HD-R500 LED Display Controller
Availability: Pre-Order
SKU: HD-R500
Regular price
$16.50 USD
$35.00
Save
$18.50
(52% off)
Shipping calculated at checkout.
Applicable To Brand Warranty Policy
GUARANTEED SAFE CHECKOUT
Spent $1,000.00 more for free shipping
Expected Delivery : - .
0
PRODUCT DETAILS

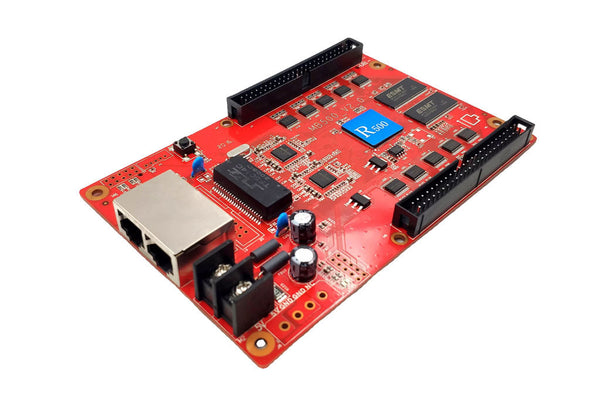

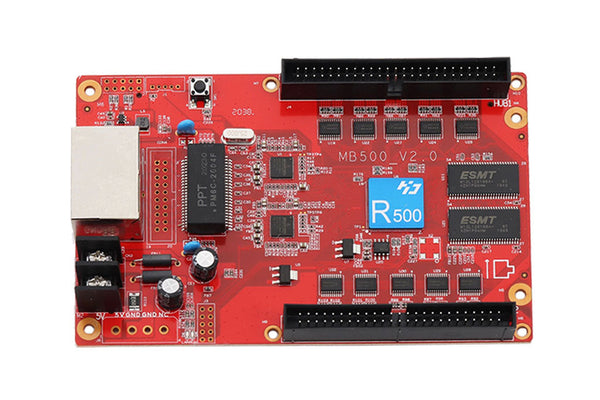

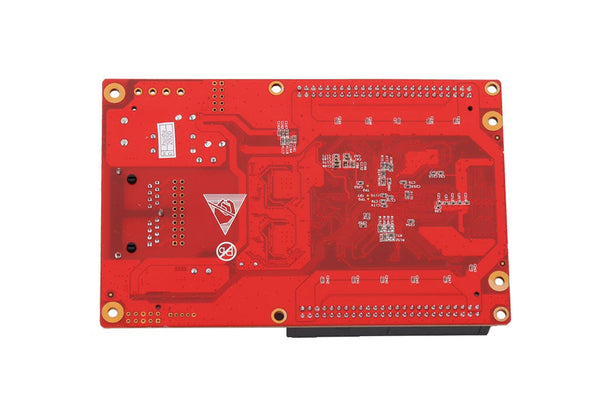

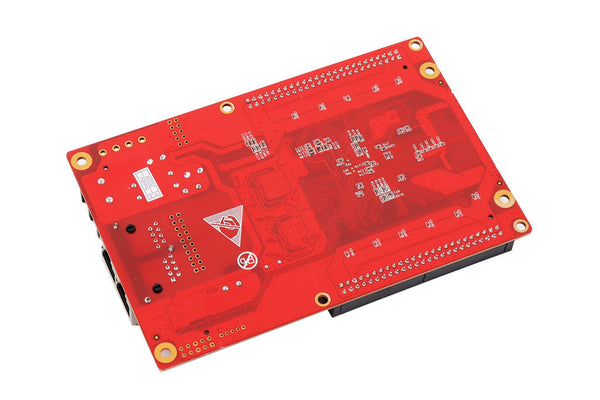

50PIN HUB Receiving Card HD-R500
HD-R500 is a receiving card that support asynchronous controller, synchronous controller, all-in-one led controller, it with 2 lines 50PIN HUB port, support different type HUB board.
- Integrated with 2 lines 50PIN HUB port, support connect different type HUB board
- Support regular chips and PWM chips
- Support static module, any scan mode within 2~64 scan
- Support data group exchange and data group offset setting
- Smart settings, draw points, trace points, etc.
- Support multi-card cascade, arbitrary order
- Recommended loading range: 128*512
| Function | Parameters |
| Work with sending card | Dual-mode sending box，Asynchronous sending card, Synchronous sending card, Video processor of VP series. |
| Module type | Compatible with all common IC module, supported most PWM IC module. |
| Scan mode | Supports any scanning method from static to 1/64 scan |
| Communication method | Gigabit Ethernet |
| Control range | Recommend：65,536 pixels (128*512)
Outdoor module width ≤256, Indoor module width ≤128 |
| Multi-card connection | Receiving card can be put in any sequence |
| Gray scale | 256~65536 |
| Smart setting | A few simple steps to complete the smart settings, through the screen layout can be set to go with any alignment of the screen unit board. |
| Test functions | Receiving card integrated screen test function, Test display brightness uniformity and display module flatness. |
| Communication distance | Super Cat5,Cat6 network cable within 80 meters |
| Port | 5V DC Power*1,1Gbps Ethernet port*2, 50 PIN HUB*2 |
| Input voltage | 4.2V-5.5V |
| Power | 5W |
HD-R500
Huidu HD-R500 LED Receiving Card Specification
