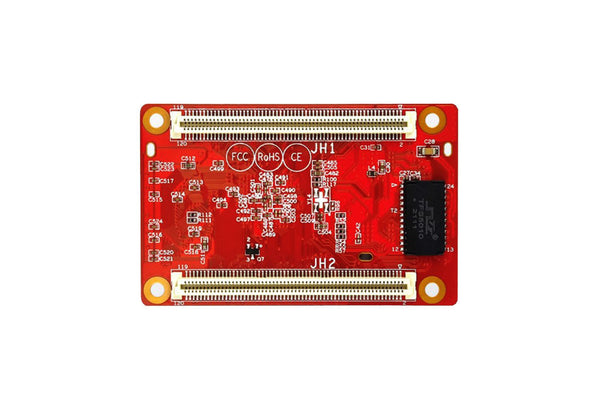

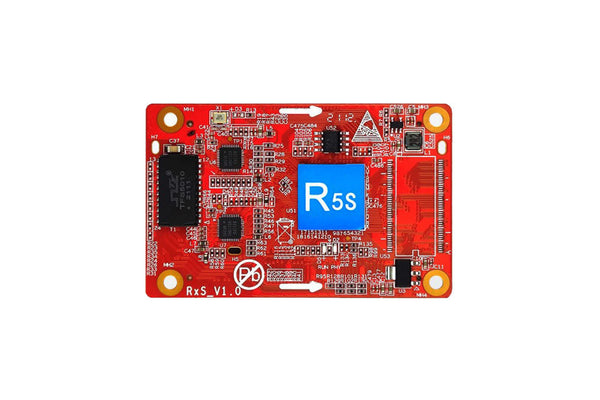

Huidu 120PIN LED Receiving Card HD-R5S LED Display Controller
Availability: Pre-Order
SKU: HD-R5S
Regular price
$16.00 USD
$35.00
Save
$19.00
(54% off)
Shipping calculated at checkout.
Applicable To Brand Warranty Policy
GUARANTEED SAFE CHECKOUT
Spent $1,000.00 more for free shipping
Expected Delivery : - .
0
PRODUCT DETAILS
Receiving Card HD-R5S for Transparent Screen and Fine Pixel Pitch LED Display
HD-R5S is a receiving card that support asynchronous controller, synchronous controller, all-in-one led controller, used for transparent screen and fine pixel pitch LED screen.
- Integrated with 2 lines 120PIN HUB port
- Support regular chips and PWM chips
- Suitable used for transparent screen and fine pixel pitch LED screen
- Support static module, any scan mode within 2~64 scan
- Support data group exchange and data group offset setting
- Smart settings, draw points, trace points, etc.
- Support multi-card cascade, arbitrary order
- Recommended loading range: 128*768
| Function | Parameters |
| With sending card | Dual-mode sending box，Asynchronous sending card, Synchronous sending card, Video processor of VP series. |
| Module type | Supports transparent screen modules for all normal chips and mainstream PWM chips. |
| Scan Mode | Support any scanning method from static to 1/64, support extraction and empty point setting. |
| Communication | Gigabit Ethernet port |
| Control Range | Recommend：98,304 pixels (128*768) |
| Multiple cards cascaded | Receiving cards can be arbitrarily Sort, synchronized in nanoseconds |
| Gray Scale | Support 256~65536 (adjustable) |
| Smart setting | A few simple steps to complete the smart setting, and the display module can be matched with any wiring mode through the screen body routing setting. |
| Communication distance | Super category 5 , Super category 6 network cable is within 80 meters |
| Port | 120PIN*2 |
| Input voltage | 4V-6V |
| Power | 5W |
Further Information:
HD-R5S
Huidu HD-R5S LED Receiving Card Specification
