- T901 - $78.00
- T901S - $95.00
PRODUCT DETAILS

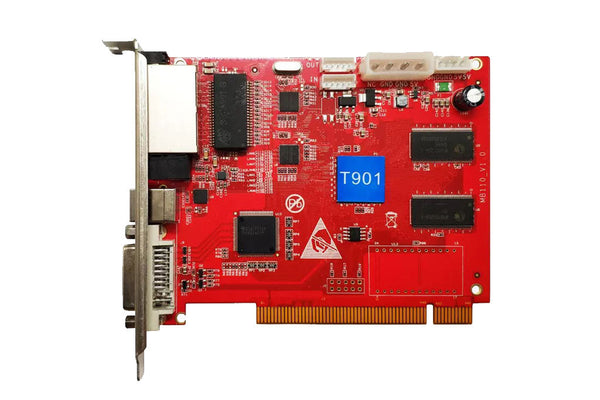

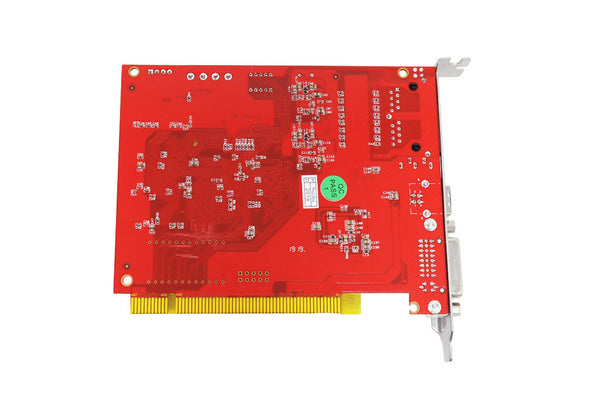

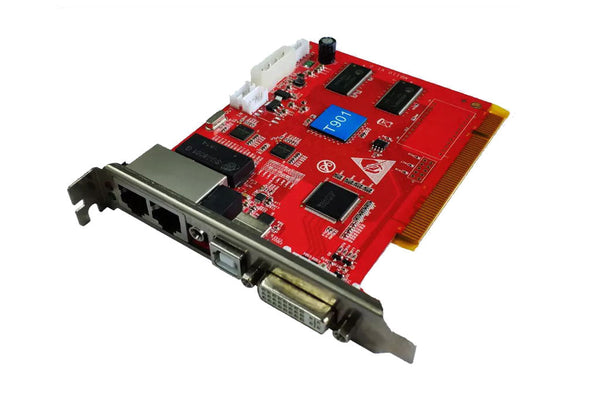

Huidu HD-T901 is a synchronous sending box with one DVI signal input, 2 Gigabit network, the maximum load capacity is 1.3 million pixels, widest 3840 pixels, highest 2048 pixels, support multiple device splicing control LED screen.
- 1. Support 1~64 scan, compatible with indoor and outdoor full color and single color module.
- 2. Control range: 1.3 million pixels, the widest 3840 (need video processor), and the highest 2048.
- 3. One DVI video input.
- 4. Supports up to 65536 grayscale level.
- 5. Support cascading with serial port to configure multiple sending cards, support sending card cascade to control screen in high resolution.
Huidu HD-T901 Synchronous Sending Card Parameters:
| Function | Parameters |
| Module type | Compatible with indoor and outdoor full color and single color module;
Support PWM chips and conventional chip |
| scanning method | Supports any scanning method from static to 1/64 scan |
| Control range | 1.3 million pixels (1280*1024@60Hz)
Note：width more than1920 pixels, it need used with video processor. |
| Grayscale | Support 0-65536 level adjustable |
| Program update | DVI synchronous display |
| Temperature of working environment | -20℃-80℃ |
| interface | Input: 5V power supply terminal, DVIx1, USB 2.0 x1, PCI finger x1, serial cascade x1, Audio x1
Output: 1000M RJ45 x2, serial for cascadingx1 |
| Power | 5W |
Huidu HD-T901 Synchronous Sending Card Connection Diagram：
Upgraded programs by laptops, mobile phones with Wi-Fi connection or use U-disk for upgrade programs.
Huidu HD-T901 Synchronous Sending Card Connection DiagramFurther Information:
Huidu HD-T901
Huidu HD-T901 LED Controller Specification
