PRODUCT DETAILS

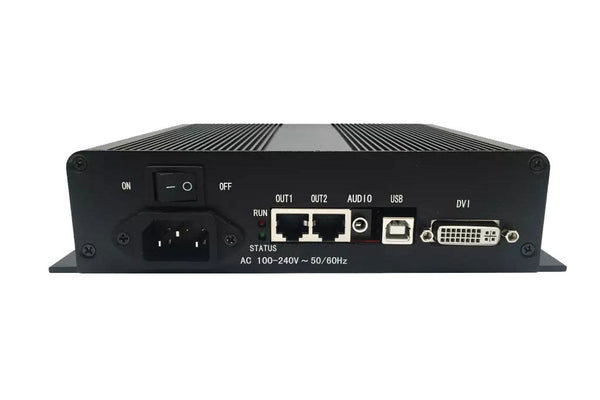

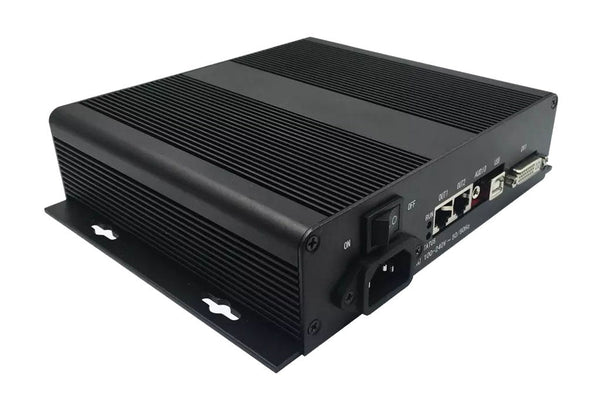

Synchronous Sending Box HD-T901B
HD-T901B is a synchronous sending box with one DVI signal input, 2 Gigabit network, the maximum load capacity is 1.3 million pixels, widest 3840 pixels, highest 2048 pixels, support multiple device splicing control LED screen.
- 1. Support 1 dual channel stereo input；
- 2. One DVI video input；
- 3. USB-B control interface；
- 4. Cascading multiple units can be unified control；
- 5. Built-in 110V~220V AC to 5V DC transformer；
- 6. 2 network port output, maximum control of 1.3 million pixels.
Huidu HD T901B Synchronous Sending Box Connection Diagram：
Huidu HD T901B Synchronous Sending Box Parameters:
| Function | Parameters |
| Control range | 1.3 million pixels (1280*1024@60Hz)
Note：width more than1920 pixels, it need used with video processor. |
| Program update | DVI synchronous display |
| Audio output | Standard 3.5mm interface dual channel stereo input |
| Audio input | Need to cooperate with multi-function card to achieve audio output |
| Communication type | USB-B type interface, Gigabit network port |
| Play box interface | Input: AC 110~220V 50/60Hz power terminal *1, DVI *1, USB 2.0 *1
Output: 1000M RJ45 *4, dual channel Audio* 1 |
| Operating Voltage | 4.5V~5.5V，Input voltage AC 110~220V |
| Debugging software | HDSet |
| Player software | HD Show（not necessary） |
| Power | 10W |
Further Information:
Huidu HD-T901B
Huidu HD-T901B LED Controller Specification
