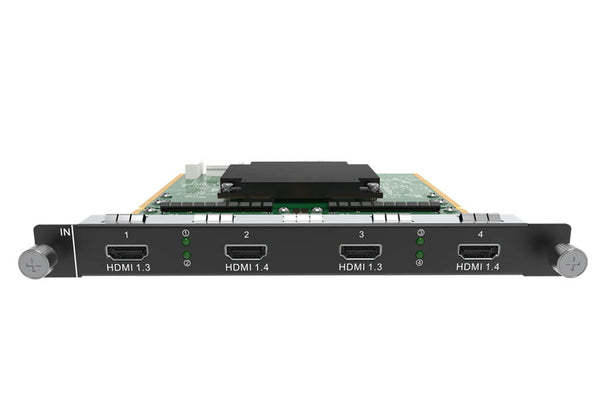

NovaStar H Series 4x HDMI Input Card

Novastar H Series 4x HDMI Input Card

The H Series 4x HDMI Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. It is HDCP 1.4 compliant and supports 10-bit input video signals. If four HDMI signals are connected, the maximum resolution is 2048x1152 @60 Hz per input, with custom resolutions of up to a maximum of 2560x972 or 884x2560 @60 Hz. If only two HDMI1.4 inputs are used, each input supports resolutions of up to 3840x1080 @60 Hz, and custom resolutions of up to 4096x1124 or 1024x4095 @60 Hz. Four status LEDs indicate whether the input signal is valid.

• Supports HDMI 1.3 and 1.4 √
• Supports 10-bit input source  √

• HDCP 1.4 compliant   √

• Four status LEDs  √

HDMI 1.3:2
HDMI 1.4a:2
Input Slots:1
Maximum Input Resolution:2048 x 1152, 3840 x 1080
Weight:0.8 kg (1.764 lb)
IP Rating:IP20 (indoor use only)
Colour:Black
