NovaStar H Series 2x HDMI 2.0 + 2x DP 1.2 Input Card (H15)
Applicable To Brand Warranty Policy
Expected Delivery : - .
PRODUCT DETAILS

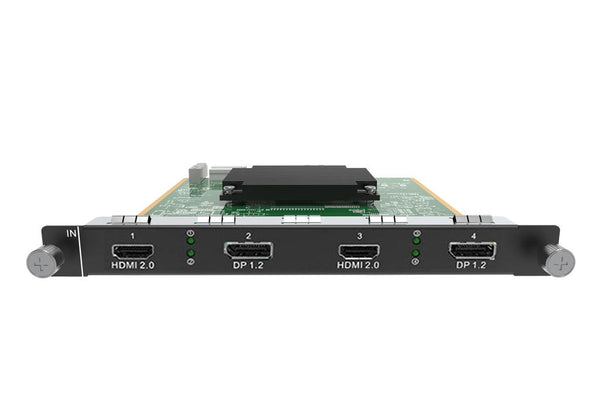

Novastar H Series 2x HDMI 2.0 + 2x DP 1.2 Input Card
The H Series 2x HDMI 2.0 / 2x DP 1.2 Input Card is an input card for the H Series H2/H5/H9/H15 Video Wall Splicers. It is HDCP 2.2 compliant. It accepts one HDMI 2.0 signal OR one DP 1.2 signal (not both at the same time). The HDMI 2.0 input is backwards compatible with HDMI 1.4 and 1.3 and supports resolutions of up to 4096x2160 @60 Hz or 8192x1080 @60 Hz. The DP 1.2 input is backwards compatible with DP 1.1 and supports resolutions of up to 4096x2160 @60 Hz or 8192x1080 @60 Hz. Two status LEDs indicate if the input signal is valid.Please note that this card can only be installed in slots I-1 to I-8 of the Novastar H15 and H15 Enhanced.
- Supports HDMI 2.0 and DP 1.2 √
- HDCP 2.2 compliant √
- Two status LEDs √
DP 1.2:2
HDMI 2.0:2
Input Slots:2
Maximum Input Resolution:4096 x 2160, 8192 x 1080
Weight:0.8 kg (1.764 lb)
IP Rating:IP20 (indoor use only)
Colour:Black
