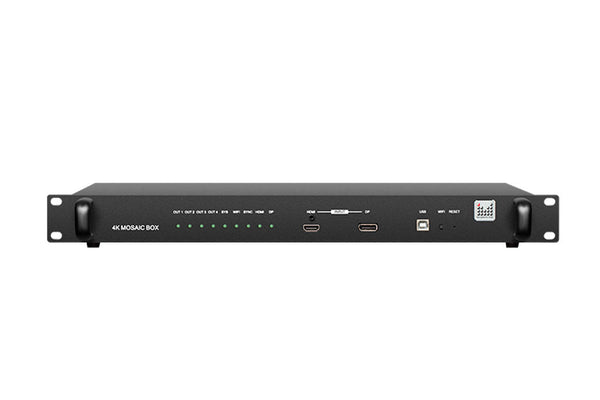

Magnimage MIG-F4-1U Multi-Screen Splicing Processor 4K Mosaic Box LED Video Processor
Applicable To Brand Warranty Policy

Expected Delivery : - .
- MIG-F4-1U - $800.00
- MIG-F4D(DVI Output)
- MIG-F4H(HDMI Output)
PRODUCT DETAILS
MIG-F4-1U series 4K video splicing box is a new mini video splicing device launched by Maipu Vision. It features powerful, single-machine four-splicing, intelligent control and automatic backup. It supports DP and HDMI multi-input interfaces. Single input supports up to 4Kx2K/60Hz 4:4:4; supports 8K x1K/60Hz input and supports backward compatibility; stylish and easy to use, suitable for various multi-screen applications.
- Mosaic application 1
- Mosaic application 2
- 8K x 1K / 60Hz input
- Layer zoom function
- Same input source to 4 outputs
- Edge blending mosaic
Magnimage MIG-F4 series 4K video mosaic box Features:
Technical Specification
Input parameter
Port | Quantity | Resolution specifications |
DP | 2 | DP 1.2 support 3840*2160/60Hz and customized resolution |
HDMI | 2 | HDMI 2.0 support 3840*2160/60Hz and customized resolution |
Output parameter
Port | Quantity | Resolution specifications(Single DVI output ) |
DVI/HDMI | 4 | Single output port resolution: 1024×768 /60Hz 1366 ×768 /60Hz 1440×900 /60Hz 1280×1024 /60Hz 1680×1050 /60Hz 1600×1200 /60Hz 2560×816 /60Hz 1440 ×1440 /60Hz 1920×1080/60Hz and customized. Widest 2900, highest 2160. |
Product accessories
Power cable ×1 Power adapter ×1 U-disk ×1 Square mouth USB cable ×1 Certificate of qualification ×1 User manual ×1
Magnimage MIG-F4-1U 4K Video Splicer
MIG-F4-1U series 4K video splicing box is the latest mini video splicing device launched by Magnimage, with powerful, stand-alone quad splicing, intelligent control, etc.; supports DP and HDMI input interface; single input maximum support 4K x 2K/60Hz 4:4:4; DP supports 8K x 1K/60Hz input, and supports backward compatibility. It is fashionable, easy to use and suitable for a variety of multi-screen applications.
