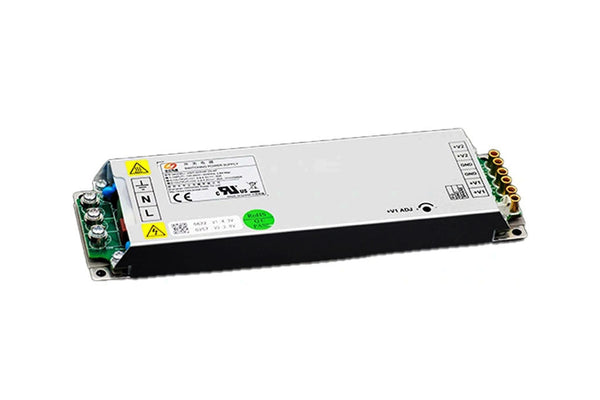

HWAWAN LED Displays Power Supply HWT-503V8F-2S-SP

PRODUCT DETAILS

HWAWAN LED Displays Power Supply HWT-503V8F-2S-SP Features:
HWT-503V8F-2S-SP is a High-efficiency power supply with dual outputs (3.8V/25A, 2.8V/25A), designed for LED display products. The power supply has a current sharing function and can be used in parallel. The power supply has the following characteristics

+V1 has the current sharing function, +V2 has the parallel function, the total power balance of multiple machines can be realized through the current sharing bus
The power supply has a Power Good signal which can be used to detect the operating status of the power supply
Small size:186mm*55mm*19mm(L*W*H)
Light weight : ≤320g
High efficiency:88%(@Input: 220VAC, Outputs: V1:3.8V/25A、V2:2.8V/25A )
Small Leakage current:1mA
Output voltage +V1 can be adjusted from 3.8V to 4.3V
Output voltage +V2 can be adjusted from 2.8V to 3.2V
EMI standard: EN55032 CLASS A
Wide operating temp. range:-40~+70℃(+50 ° C ~ +70 ° C linear de-rated)
Wide Input voltage range:90VAC~264VAC
Power factor: ≥0.95
Compliance with CE ,CB,CCC,ULcertifications

    View More
    HWAWAN HWT-503V8F-2S-SP LED Power Supply Specification
