Colorlight LED Display Accessories OP4 OP1 Fiber Optic EO Converter Device

Pre-Order
SKU: OP4
Regular price $200.00 $2,000.00 | Save $1,800.00 (90% off)
/
Shipping calculated at checkout.

Featured text for product

You have got FREE SHIPPING

Expected Delivery : - .

00

Colorlight LED Display Accessories OP4 OP1 Fiber Optic EO Converter Device

OP4 - $200.00
  • OP4 - $200.00
  • OP1 - $55.00

PRODUCT DETAILS

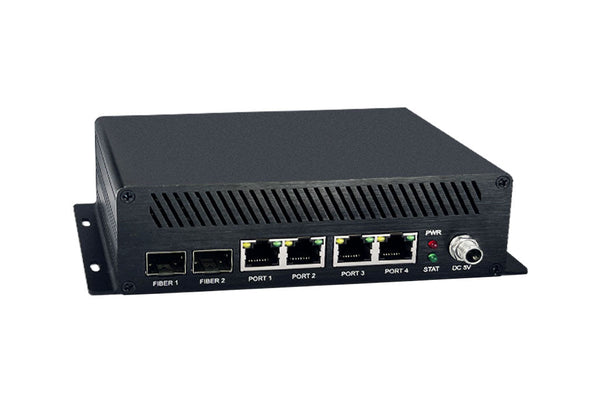

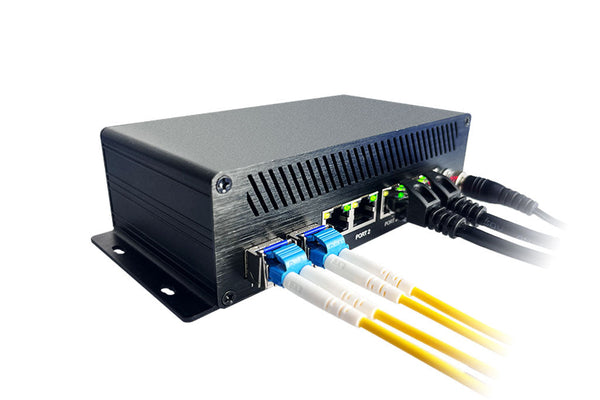

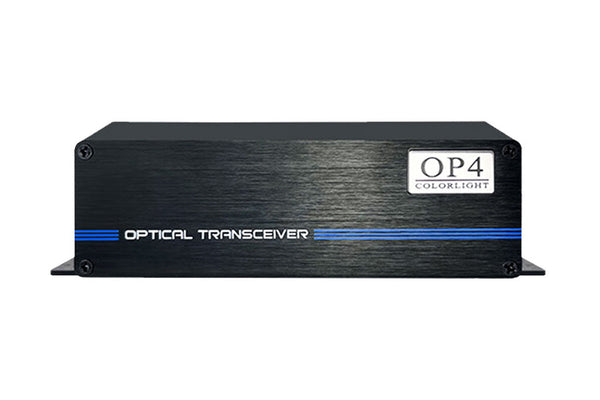

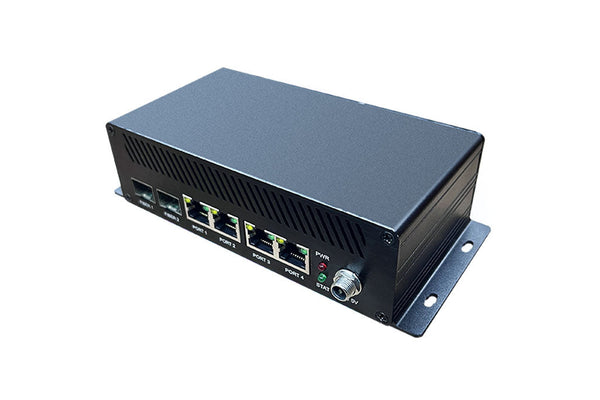

Colorlight OP4 Fiber Optic Transceivers

OP4 is a fiber optic transceiver specially designed to meet the long-distance transmission occasions of LED displays. It is small in size and light in weight, and can be easily installed on the back or inside of the screen. At the same time, all its interfaces are on the same side of the body, which is convenient for wiring. . OP4 has long transmission distance, high working stability, supports photoelectric two-way conversion, can be used without setting, and can be widely used in different fields such as radio and television, data centers, and monitoring centers.

  • 2 optical fiber ports, the data transmission rate is 2.5Gb/s
  • 4 RJ45 Gigabit Ethernet ports, each data transmission rate is 1Gb/s
  • Standard single-mode dual-core LC optical fiber module, transmission distance 2km
  • Specially designed for LED control system, high synchronization and stability
  • Photoelectric mutual conversion, self-adaptive two-way working mode
  • Support hot-swapping, no need for any drivers and settings, just connect and use
  • Single-mode dual-core working mode
  • Support paired use or use with a master controller with an optical fiber output interface
  • Front and rear ventilation design, excellent heat dissipation performance, suitable for closed high temperature working environment

Colorlight OP1 Fiber Optic Transceivers

OP1 fiber optic transceiver realizes the conversion between Ethernet twisted pair and Ethernet optical signal, and the transmission distance is 10km. Support 802.3i, 802.3j, 802.3u, 802.3z, 802.3ab and other standard protocols. This series of products is designed to support link failure alarm, wide operating temperature range, port and power supply lightning protection, etc.

Optical Converter OP4 and OP1 Working Principle

Colorlight LED Display Accessories OP4 OP1 Fiber Optic EO Converter Device


Differences between Optical Converters OP4 and OP1

Colorlight LED Display Accessories OP4 OP1 Fiber Optic EO Converter Device different
Fiber optic interface ------OP4 is LC / OP1 is SC
Number of optical ports ------OP4 is 2 / OP1 is 1
Optical port rate ------OP4 is 2.5Gb/s / OP1 is 1.25Gb/s
Fiber type ------OP4 is single-mode dual-core / OP1 is single-mode single-core
Transmission distance  ------ OP4 is 5km / OP1 is 10km

Further Information:
OP4/OP1
Colorlight OP1 Fiber Optic Transceivers Specification
Colorlight OP4 Fiber Optic Transceivers Specification
Colorlight OP1 Fiber Optic Transceivers User Manual

Colorlight OP4 Fiber Optic Transceivers Updata
