Colorlight D9 D16 Video Splicer matrix LED Display multi-screen splicing processor

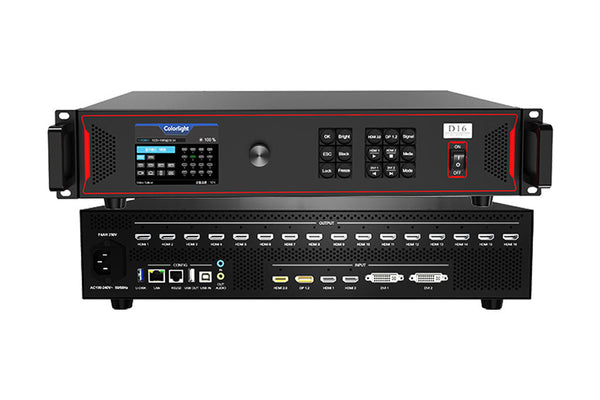

D16 is a video splicer with powerful video signal receiving and processing capability. lt includes 16 HDML output ports ， supports 4K and 2K video signal input, and has a load capacity 0f up to 33. 17 million pixels, which can greatly meet the needs 0f different customers.

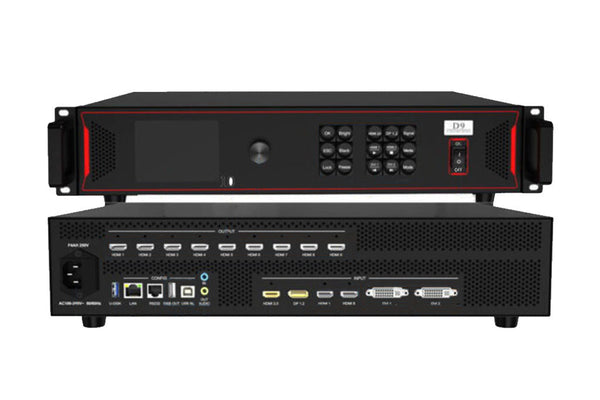

D9 is a video splicer with powerful video signal receiving and processing capability. It includes 9 HDMI output ports, supports 4K and 2K video signal input, and has a load capacity of up to 18.66 million pixels, which can greatly meet the needs of different customers.

• Grand Display. Explore World
  16× HDMI fixed output ports, 1080P resolution, create crystal images.
• Dual 4K signal inputs
  HDMI2.0+DP1.2 dual 4K inputs.
• Enjoy audio and video
  Extract and output audio from video input source, independent audio input and output.
• Scene tour. Flexible control
  Save and recall up to 128 scenes, freely set scene tour order and interval.
• Window roaming as you'd like
  6-layer window overlay, screen splicing, window roaming, scale overlay, arbitrary cropping.
• U-disk playback, convenient and efficient
  Video / image playback.
• OSD remote control unit (optional)
  External RCU series Bluetooth device, enjoy convenience and quickness with one button.
• Extensive control methods, meet diverse needs
  LAN, RS232 serial port control, APP, pad, central control.
• Application Scenarios
  Widely applied in various scenarios such as LED / LCD splicing screen, control and broadcast centres, multichannel projector, surround cinema screen, large billboard, etc.
• Web control. Easy management
  Without downloading software, users can easily manage the device on the browser.
  Compatible with various operating systems.

Colorlight D9 D16 Video Splicer Appearances

Colorlight D9 D16 Video Splicer Working Diagram

Colorlight D9 D16 Video Splicer Parameter Comparison

Further Information:
D9/D16
Colorlight D9 LED Video Splicer Specification
Colorlight D16 LED Video Splicer Specification
Colorlight D9 D16 LED Video Splicer User Manual
