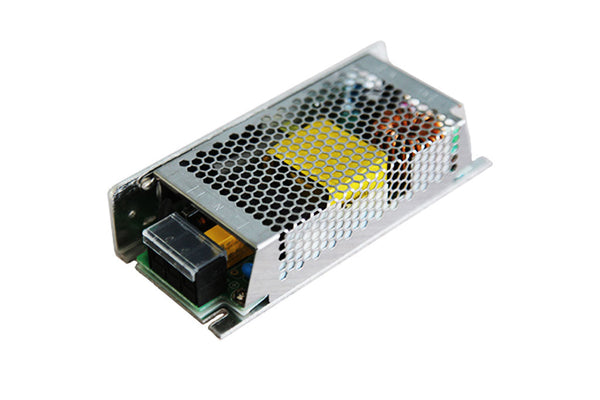

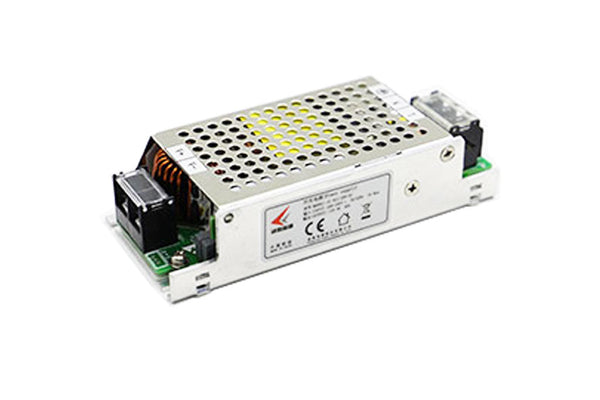

CL LED Displays Power Supply AS1-200-5 40A 200W LED Power Supply

Pre-Order
SKU: AS1-200-5A
Regular price $20.00 $55.00 | Save $35.00 (63% off)
/
Shipping calculated at checkout.

Featured text for product

You have got FREE SHIPPING

Expected Delivery : - .

00

CL LED Displays Power Supply AS1-200-5 40A 200WLED Power Supply

CL-AS1-200-5 - $20.00
  • CL-AS1-200-5 - $20.00
  • CL-AS1-200-5C - $20.00

PRODUCT DETAILS

CL-AS1-200-5 5V40A Standard Size LED Power Supply Features:

Model NO:

  • CL-AS1-200-5A,  5V 40A 200W
  • CL-AS1-200-5B, 5V 40A 200W

Input Parameter:

  • Input Voltage Range: 180~264Vac
  • Input Frequency Range:  47-63HZ
  • AC Current: ≤3.0A(200Vac, full load)
  • Input inrush current<110A(220Vac input, 25℃  cold start)
  • Empty power consumption<5W (200-264Vac input)

Output Parameter:

  • Dc Voltage Range:5 V
  • Rated Current: 35A( NO Auxiliary heat sink), 40A(installed an Auxiliary heat sink between the power supply bottom case and LED screen case)
  • Max power: 200W
  • Ripple & Noise: ≤300mVp-P
  • Efficiency (Typ):≥88.5% Vin=220Vac,25℃, rated load
  • Voltage Tolerance:±2%
  • Power on delay time<5S

Protection:

  • OCP(45-60A)
  • SCP(Hiccup mode, auto recovery after fault condition is removed)

Safety&EMC:

  • EN60950-1,EN55022
  • Hi-pot: I/P-O/P: 1.5KVAC/ 10mA/ 60S,I/P-FG:1.5KVAC/ 10mA/ 60S ,O/P-F/G: 500Vdc/10mA/1min
  • Isolation Resistance: 100MΩ Max/ 500VDC/ 3S
  • Leakage current<0.75mA(AC240V)

Others:

  • Working Temperature:-10℃ ~ +50℃
  • Cooling: ventilate by air convection
  • Working Humidity:5%~90%RH
  • Storage temperature: -20℃~+85℃
  • Dimension (L*W*H):136*58.5*30mm
  • Carton Dimension: 42.3*27.3*27.5CM
  • Packing:80PCS/ 25KG/CTN/0.03CBM
  • MTBF:50K hours (MIL-HDBK-217F (25 )
