VDWALL A66 4K LED Video Processor With 4 DVI Output LED Video Wall Splicer

Pre-Order
Regular price $1,280.00 $2,999.00 | Save $1,719.00 (57% off)
/
Shipping calculated at checkout.

Featured text for product

You have got FREE SHIPPING

Expected Delivery : - .

0

VDWALL A66 4K LED Video Processor With 4 DVI Output LED Video Wall Splicer

PRODUCT DETAILS

VDWALL A66 4K Mosaic Processor
VDWall 4k Processor A66 provides multi-level synchronized cascading via Genlock function 4 A66 cascading extend pixel to pixel display up to 8K4K@60HZ
Versatile control method, including front panel button control, RS232, USB, Lan control
Genuine 4K@60Hz processor
Prevalent in high-end occasions, such as stage performance, exhibition, conven-tionhall, school auditorium, church, advertising, monitoring and control center etc.
  • 1. Support 4K2K@60Hz, 1080p@60Hz various input signal
  • 2. Maximum 4 4K windows display
  • 3. Preset fixed 6 dual images display
  • 4. One key switch between single image, dual images and 4 images mode
  • 5. 4 DVI output sync splicing, driving capability up to 9.2 million pixels
  • 6. Freely image cropping on input signal
  • 7. User definable output resolution
  • 8. Gray level, brightness adjustment in independent RGB channel
  • 9. 13 preset display mode, mode duplication and backup

Inputs
8 UHD input consist of HDMI2.0/1.4*5, DP 1.2*3 Maximum input resolution up to 4096*2160@60Hz
Support HDCP1.4/HDCP2.2
VDWALL A66 4K LED Video Processor With 4 DVI Output LED Video Wall Splicer
Output
4ch DVI/HDMI output, synchronized splicing, drive LED with 9.2 million pixels
Each DVI output, any input signal crop, freely adjust size and position of output image
User-defined output resolution
Auto calculation mosaic, fast mosaic
Each output can adjust color, RGB and bias independently
13 preset display modes, display mode duplicate, display mode backup
VDWALL A66 4K LED Video Processor With 4 DVI Output LED Video Wall Splicer
Multi-Image process
Support maximum 4*4K2K60Hz images display simultaneously
6 preset dual images display mode
One key freely switches among single image, dual images and quad images mode

Image processing
Real 10-bit image processing, color more vivid and natural

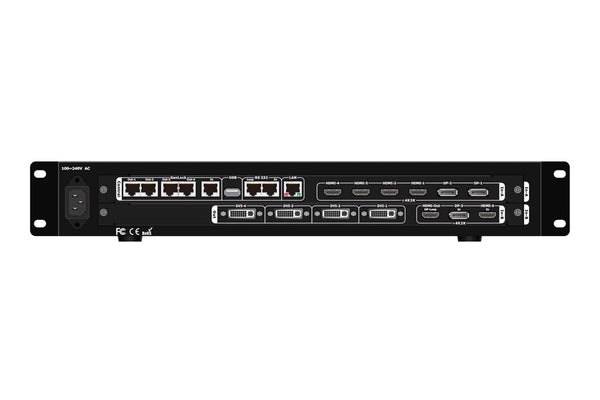

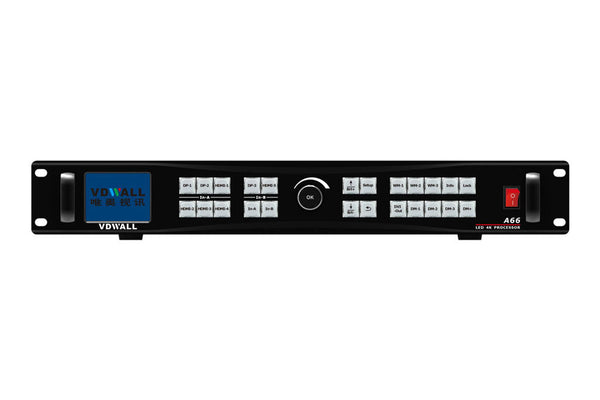

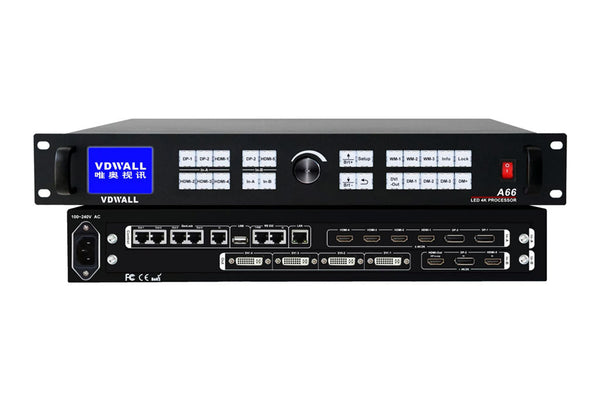

A66 LED Video processor Appearance
VDWALL A66 4K LED Video Processor With 4 DVI Output LED Video Wall Splicer

A66 LED Video processor Working DiagramSpecification
VDWALL A66 4K LED Video Processor With 4 DVI Output LED Video Wall Splicer
VDWALL A66 4K LED Video Processor With 4 DVI Output LED Video Wall Splicer

Further Information:
VDWALL A66 4K Mosaic Processor
VDWALL A66 4K Mosaic Processor user manual
