- H2F - $220.00
- H10Fix - $880.00
- H10FN - $1,600.00
- H10FN2 - $1,600.00
- H16F - $3,500.00
- H16F-N - $3,500.00
PRODUCT DETAILS

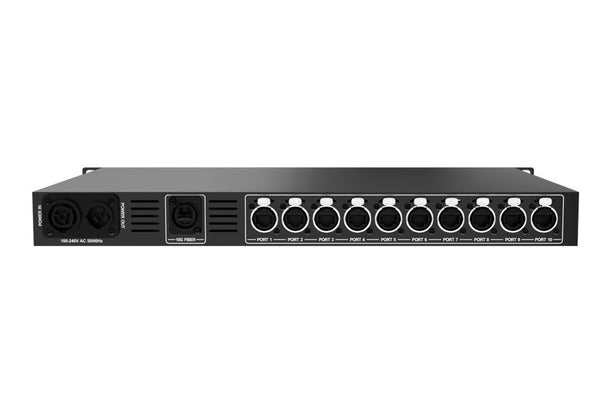

Colorlight H10FN Fiber Optic Transceivers
Distributed feedback laser diode ( DFB LD ); Single mode twin-core fiber ( TCF ); Up to 10Gb/s data links; Multi-source package with full-duplex LC connector; Hot-pluggable ; Eye safety designed to meet laser class 1;
·One Neutrik opticalCON DUO interface, compatible with LC-LC interface, with transmission speeds up to 10Gb/s
·10 Neutrik RJ45 ethernet port, up to 1Gb/s per channel
·10km transmission distance
·Hot-pluggable
·Single mode twin-core fiber ( TCF )

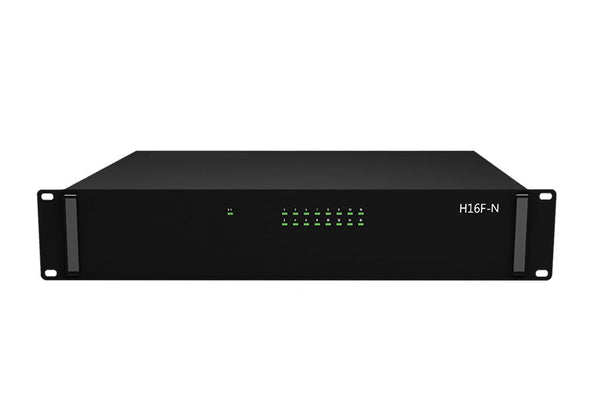

Colorlight H16F-N Fiber Optic Transceivers
Distributed feedback laser diode ( DFB LD ); Single mode twin-core fiber ( TCF ); Up to 20Gb/s data links; Multi-source package with full-duplex LC connector; Hot-pluggable ; Eye safety designed to meet laser class 1;
·Distributed feedback laser diode ( DFB LD )
·Single mode twin-core fiber ( TCF )
·Up to 20Gb/s data links
·Fiber module with 1Km transmission distance
Fiber module with 20Km transmission distance ( optional )
·Multi-source package with full-duplex LC connector
·Hot-pluggable
·Eye safety designed to meet laser class 1
| Parameters Description | |
|---|---|
| Storage Temperature | -40 ~85 ℃ |
| Operating Temperature | 0 ~70 ℃ |
| Power | AC 100~240V |
| Data Rate | 20Gb/s |
| Working Mode | Single-Mode |
| Transmission Distance | Fiber module of 1Km, fiber module of 20Km ( optional ) |
| Fiber Interface Type | Full-duplex LC |
| Laser | DFB |
| Gigabit Ethernet Port | 16 Neutrik Gigabit Ethernet ports |
| Fiber Interface | 2 ports*10G bandwidth |

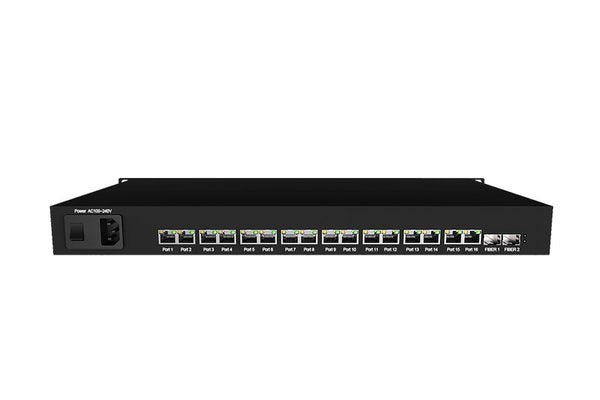

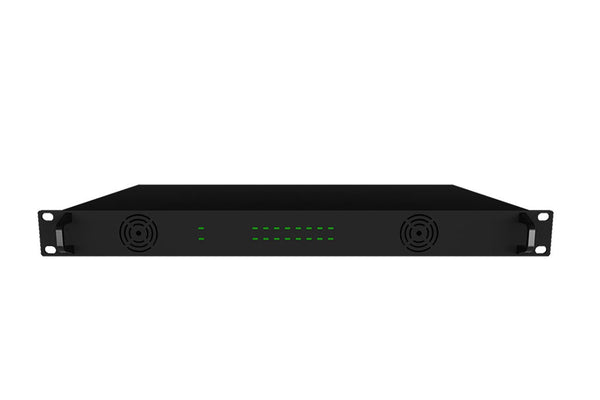

Colorlight H16F Fiber Optic Transceivers
Distributed feedback laser diode ( DFB LD ); Single mode twin-core fiber ( TCF ); Up to 20Gb/s data links; Multi-source package with full-duplex LC connector;Hot-pluggable ;Eye safety designed to meet laser class 1;
·Distributed feedback laser diode ( DFB LD )
·Single mode twin-core fiber ( TCF )
·Up to 20Gb/s data links
·Fiber module with 1Km transmission distance
Fiber module with 20Km transmission distance ( optional )
·Multi-source package with full-duplex LC connector
·Hot-pluggable
·Eye safety designed to meet laser class 1
| Parameters Description | |
|---|---|
| Storage Temperature | -40 ~85 ℃ |
| Operating Temperature | 0 ~70 ℃ |
| Power | AC 100~240V |
| Data Rate | 20Gb/s |
| Working Mode | Single-Mode |
| Transmission Distance | Fiber module of 1Km, fiber module of 20Km ( optional ) |
| Fiber Interface Type | Full-duplex LC |
| Laser | DFB |
| Gigabit Ethernet Port | 16 ports, RJ45 |
| Fiber Interface | 2 ports*10G bandwidth |

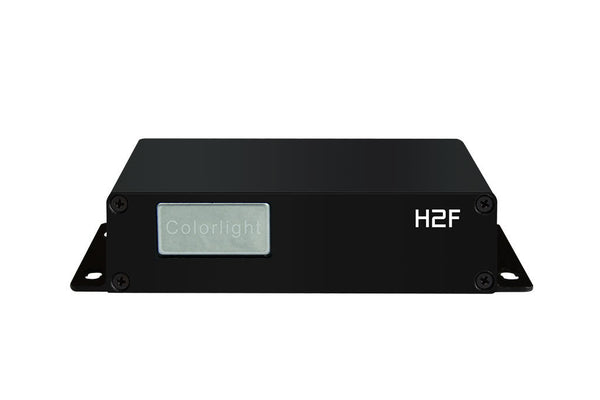

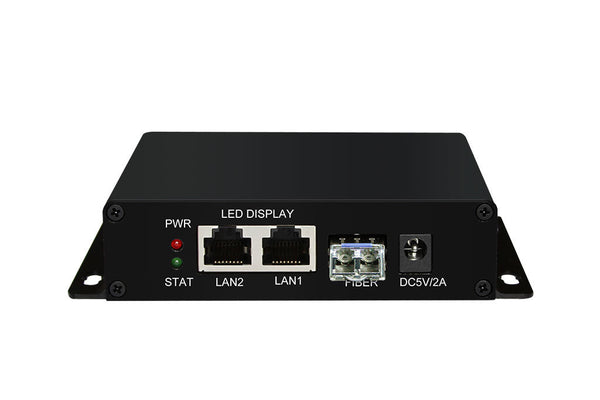

Colorlight H2F Fiber Optic Transceivers
Distributed feedback laser diode ( DFB LD ); Up to 2.5Gb/s data links; Multi-source package with duplex LC connector; Hot-pluggable; Eye safety designed to meet laser class 1;
·Distributed feedback laser diode ( DFB LD )
·Up to 2.5Gb/s data links
·Multi-source package with duplex LC connector
·Hot-pluggable
·Eye safety designed to meet laser class 1
| Parameters Description | |
|---|---|
| Storage Temperature | -40 ~85 ℃ |
| Operating Temperature | 0 ~70 ℃ |
| Power | DC 5V/2A |
| Data Rate | 2.5Gb/s |
| Working Mode | Single-mode |
| Transmission Distance | 15Km |
| Fiber Interface Type | Duplex LC |
| Laser | DFB |
| Gigabit Ethernet Port | LAN 1 & LAN 2, RJ45 |
| Fiber Interface | 1 port, 2.5G bandwidth |
Further Information:
H2F/H10Fix/H10FN/H10FN2
Colorlight H2F Fiber Optic Transceivers Specification
Colorlight H10Fix Fiber Optic Transceivers Specification
Colorlight H10FN Fiber Optic Transceivers Specification
Colorlight H10FN2 Fiber Optic Transceivers Specification
Colorlight H10FN Fiber Optic Transceivers User Manual
