Colorlight 5G Series HC5 LED Receiving Card

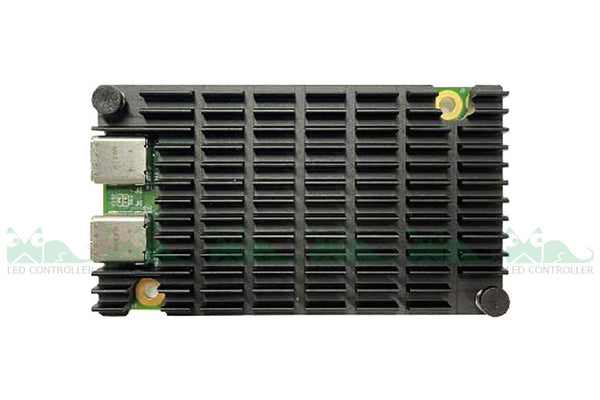

HC5 5G LED Receiving Card

Colorlight HC5 is a 5G high-end receiving card designed for fine-pitch screens in high-end fixed display and flexible rental scenarios. It adopts a high-density connector interface and its network signal transmission rate is 5Gb/s.Compared with the conventional Gigabit Ethernet system, effectively supports features such as high frame rate and deep color depth, and dramatically increases the load capacity through one single network cable, which in turn, increases the number of cabinet cascades, simplifying cabling between the LED screen and the controller. The benefit of the wiring promotes solid LED cabinet structural design and improves overall stability. HC5 provides, in addition to mainstream receiving card functions, a series of practical and powerful functions for high-end screens, in terms of larger control area and high precise calibration, which greatly improves the display effect and performance HC5 is ideal for church, broadcasting, intelligent security monitoring education and scientific research, stage rental and other applications.

• 12bit color depth


  12bit video source delivers 68 billion colors for marvelous visual effects.
• Infi-bit grayscale extension


  Dramatically increase the grayscale level of the screen, showing more low-gray detail, and presenting a more realistic image.
• Grayscale refinement


  Using the colorimeter, each grayscale is accurately measured and calibrated,eliminating gray scale color cast for a smooth grayscale transition.
• Independent RGB Gamma adjustment


  Through the software, the red, green and blue Gamma are independently adjustable for correcting the color jump and cast,effectively controlling the low gray unevenness and white balance drift of the display, so as to make the picture more realistic.
• Gamut adjustment


  Select output mode according to the color space of video source and image to ensure color accuracy,so as to solve the problem of color distortion caused by the difference of the display color gamut.
• HDR


  Support HDR10/HLG. Built-in color management module enables user-defined adjustment of the PQ photoelectric conversion curve based on the screen color characteristics to present the best display effect.
• Advanced softedge


  Independent softedge coefficient, fast processing, applicable to fixed installation and leasing, quickly eliminates splicing bright and dark lines.
• Multi-grayscale calibration


  Compared with conventional calibration, Multi-grayscale calibration solves low gray blocks and color temperature offset problem caused by the nonlinear brightness change of fine pitch cabinet.
• High frame rate


  With the frame rate multiplication of the sender, it can output 120Hz, 144Hz or even 240Hz high frame rate pictures.The higher the frame rate, the smoother the picture, eliminating the phenomenon of smearing while maintaining the low latency of the system.
• SHUTTERLOCK


  With SHUTTERLOCK you can adjust LED screen refresh rate to precisely match the camera's shutter speed, so that the camera captures the perfect picture.
• Module design


  Module design assists to set up triangle, trapezoid, circle, fan and other irregular shaped LED modules and cabinets in a breeze.
• Parameter & Calibration coefficient redundancy


  Store factory parameters and calibration coefficients in receiving card and restore with one button.
• Firmware upgrade without power restart


  No need to restart power supply after upgrading receiving card firmware.

Further Information:
HC5
Colorlight HC5 5G LED Receiving Card Specification
