- FW10-C - $1,000.00
PRODUCT DETAILS
The FW10-C(MH40) is an all-in-one video controller developed by Magnimage for the rental market. With a complete video image input interface, which FW10-C including HDMI × 1 (support for 4K * 2K @ 60 signal input), DVI1X1, DPX1, DVI2X1 (support for 4K * 1K @ 60, and DP optional use), Audio × 1, can be expanded to 1 × 3G SDI. output support for the 10-way Gigabit LAN port, 1 × HDMI LOOP, and a way to the audio output, a single machine with a maximum load of 8.8 million pixels.the widest horizontal resolution of a single machine up to 8192, the highest vertical up to 3840.
The FW10-C(MH40) has two working modes, which are categorized into Mach mode, conventional mode. Under Mach mode, the single network port carries 2.2 million pixels, and the whole machine has 4 main network ports and 4 standby ports, and the whole machine carries a maximum of 8.8 million pixels; under conventional mode, the single network port carries 980,000 pixels, and the whole machine has 10 network port outputs, and the whole machine carries a maximum of 8.8 million pixels.
The FW10-C(MH40) supports quick screen pointing function, no need for computer software to configure screen connection, which greatly simplifies the on-site debugging steps.
Supports quick screen pointing, no need for computer software to configure the screen connection.
Support 10-channel Gigabit network port output, and support customized output resolution.
Input EDID management
Support single-port 4K*2K/60Hz (HDMI2.0) input.
Support window size and position adjustment and image capture function
Four-screen display
Support local, U disk reading and loading configuration files
Support receiving card serial number calibration
Support multi-camera splicing
Support automatic brightness adjustment
Support time and task management
Instantaneous switching between single input sources without black screen
4K@60Hz RGB 4:4:4 processing
Support free routing (supported in regular mode)
Seamless multi-screen switching
Arbitrary image scaling
Support template saving and retrieval
Support external independent audio input/output
Support connecting Magnimage C-Link series receiver card.
Support network port communication, set up LAN multi-control, realize wireless screen adjustment.
FW10-C All-in-1 Video Processor
- 2.2 Million Pixels Per 1G Cable
Mach series control system improves the transmission of one network cable by 650,000 points to 2.2 million points ,breaking through the bottleneck of the traditional LED control system transmission.
It simplifies the connection of LED screen and facilitates on-site wiring, saving time, effort and money.

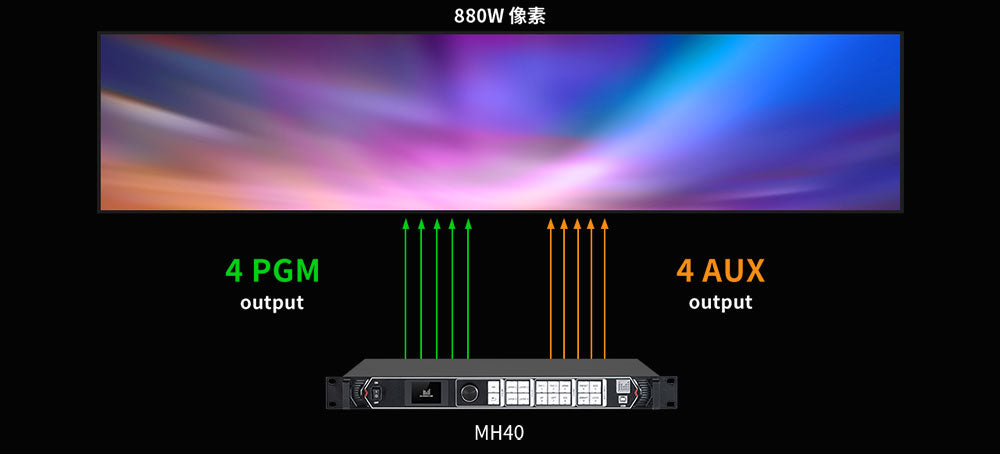

- The whole machine is 4 main and 4 standby, The whole machine loading up to 8.8M
Single controller integrates main and backup network cable output into an all-in-one machine, which improves the reliability of on-site activities and greatly saves the cost of equipment and long lan cables.
- 10G optical ports inputs/outputs
- 4 Layers Seamless Switching
- Supports multi-machine splicing
Support multi-machine cascade splicing, easily control large resolution LED screen.

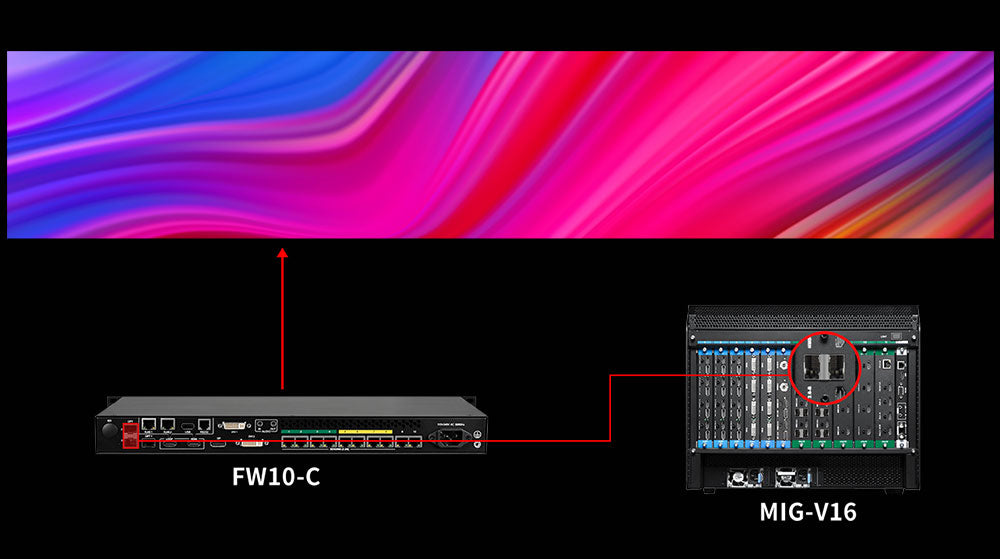

- Support interconnection with OPT port of V16 / V12
Support optical fiber interconnection with V16, V12, EC90 and other equipment, making signal transmission more stable and farther, and more cost-effective.
- Support interconnection with OPT port of M500C
Standard Input parameter
| Port | Quantity | Resolution |
| DVI2 or DP1.1(DVI, DP) |
1 |
3840×1080/60Hz、3840×2160/30Hz |
|
HDMI 2.0 |
1 |
3840×2160/60Hz and customized |
|
DVI |
1 |
3840×1080/60Hz and customized |
| OPT | 2 | For optical port input |
|
3G SDI(Assorting) |
1 |
480i,720P,1080i/60Hz,1080P/60Hz 3G SDI standard |
|
AUDIO IN |
1 |
3.5mm audio port |
Output specification
| Port | Quantity | Resolution |
|
Ethernet port |
10 |
In Mach mode,2.2M for the single port, max 8.8M loading for the whole machine; max horizontal 8192 px, max vertical 3840 px |
| In normal mode,0.98M for the single port, max 8.8M loading for the whole machine; max horizontal 8192 px, max vertical 3840 px |
||
|
HDMI LOOP |
1 |
HDMI Loop, the same with HDMI2.0 |
|
OPT |
1 |
For optical port backup or copied signal input |
|
AUDIO OUT |
1 |
3.5mm audio port |
Control port
| Port | Quantity | Resolution |
| Suare opening USB |
1 |
For pc software control |
|
RJ45 |
2 |
For pc software control or Multiple unit cascade control |
|
RS232 |
1 |
For RS232 control |
Unit Specification
| Input Power Voltage |
100-240V AC 50/60HZ |
| Power Consumption |
50W |
| Operating Temperature |
0℃ - 45℃ |
|
Size（LxWxH） |
482.6X362X44mm |
| Net Weight |
4.1KG |
Further Information:
FW10-C
Magnimage FW10-C LED Video Controller Specification
Magnimage FW16-C LED Video Controller User Manual
C-Link_5.1.0.4_2024-07-01 Installation Program (Receiver Card Version 3.0 and above)
C-Link_4.3.0.8_2023-11-10 installer (Receiver card version 3.0 or below)
