PRODUCT DETAILS

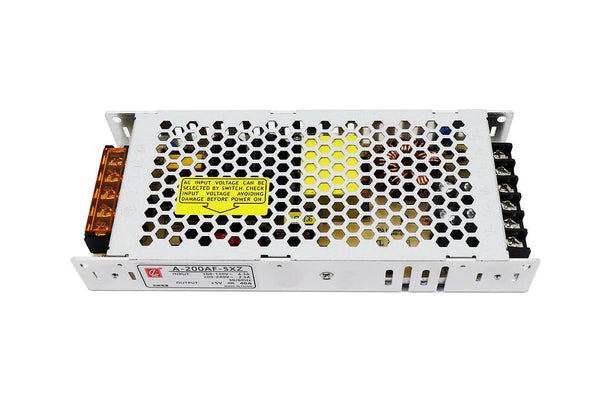

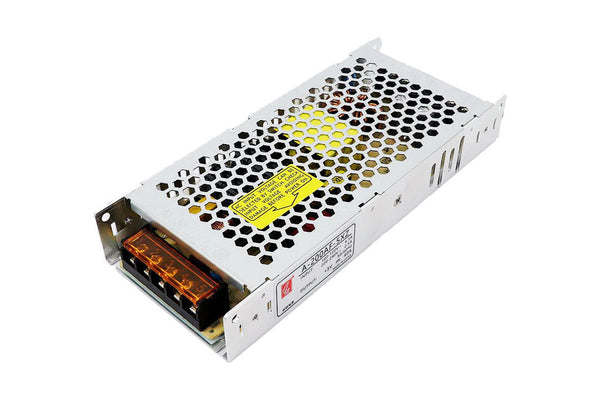

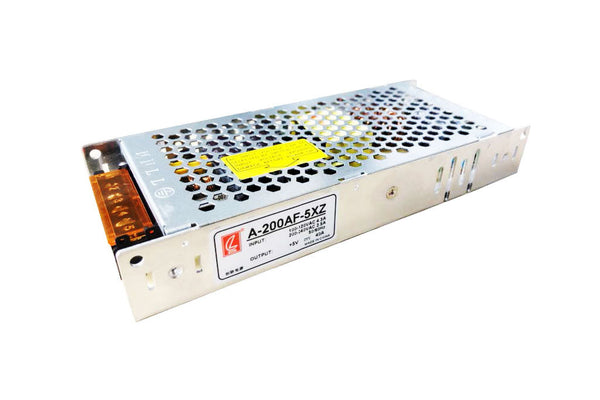

CZCL A-200AF-5XZ 5V40A 200W Low Profile LED Displays Power Supply Features:
A-200AF-5XZ series products is a 200W fanless design LED display driver power supply, input voltage range: 110~264VAC, can be applied to LED display, LED indicator and many other LED display field, This series products for ultra-thin design, height is only 30mm, can adapt to a variety of box size requirements. Ultra-high efficiency, compact housing design, good heat dissipation, to ensure that this series of products can be long-term stable work.
1,Standard ultra-thin product, height 30mm
2,-20~+50℃ working temperature (specifically check the derating curve)
3,Short circuit/overload protection function
4,100% full load aging
5,High efficiency and reliability
6,2 years warranty
Application areas: LED display, LED indicator, LED TV wall, etc.
CZCL A-200AF-5XZ 5V40A 200W Low Profile LED Displays Power Supply Parameters:
Input voltage:110-240Vac,47-63Hz
Protection:undervoltage,Overload,Short circuit
Output power:200W Max
Working temperature:-30~+60℃
Power factor:0.50@230Vac
Storage temperature:-40℃~+100℃，20~95%RH
Insulation voltage:I/P-O/P:3.0KVac
Safety standards:GB4943，UL60950-1，EN60950-1
I/P-FG:1.5KVac;O/P-FG:0.5KVac,1min
Dissipate heat:cold
EMC Standards:: GB9254，EN55022
Protecting Time: 50ms, 20ms over load
Leakage current:0.30mA@230Vac
Size:190×84×30
