- HD-T08 - $270.00
- HD-T16 - $500.00
PRODUCT DETAILS
Synchronous Sending Box HD-T16
HD-T16 is a synchronous sending box with one DVI signal input, 16 Gigabit network, the maximum load capacity is 8.84 million pixels, widest 8192 pixels, highest 4096 pixels, support multiple device splicing control LED screen .
- 1. Support 2 dual channel stereo input；
- 2. Four DVI video signal input；
- 3. USB-B control interface；
- 4. Cascading multiple units control super LED screen；
- 5. Built-in 110V~220V AC to 5V DC transformer；
- 6. 16 network port output, maximum load capacity 8.84 million pixels.

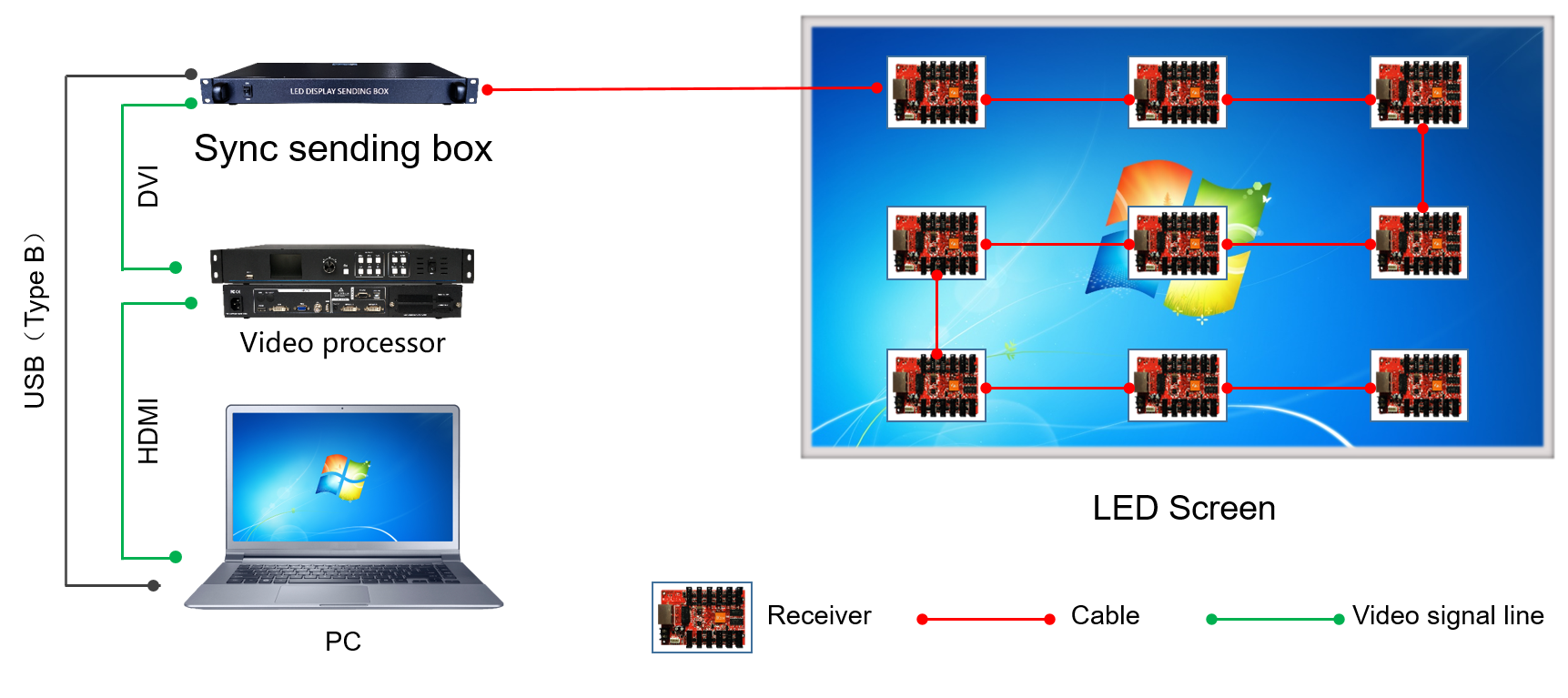

Huidu HD T16 Synchronous Sending Box Connection Diagram：
Huidu HD-T16 Synchronous Sending Box Parameters:
| Function | Parameters |
| Control range | Connect with video processor maximum control 8.84 million pixels (2560*2048@60Hz)
Widest 8192, Highest 4096 |
| Program update | DVI synchronous display |
| Audio output | Standard 3.5mm interface dual channel stereo input |
| Audio input | Need to cooperate with multi-function card to achieve audio output |
| Communication type | USB-B type interface, Gigabit network port |
| Play box interface | Input: AC 110~220V 50/60Hz power terminal *1, DVI *2, USB 2.0 *2, dual channel Audio* 2
Output: 1000M RJ45 *16 |
| Operating Voltage | 4.5V~5.5V，Input voltage AC 110~220V |
| Debugging software | HDSet |
| Player software | HD Show（not necessary） |
| Power | 20W |
Synchronous Sending Box HD-T08
- 1. Support 1 dual channel stereo input；
- 2. Two DVI video signal input；
- 3. USB-B control interface；
- 4. Cascading multiple units control super LED screen；
- 5. Built-in 110V~220V AC to 5V DC transformer；
- 6. 8 network port output, maximum load capacity 5.2 million pixels.
Further Information:
Huidu HD-T16
Huidu HD-T16 LED Controller Specification
Huidu HD-T08
Huidu HD-T08 LED Controller Specification
