RGBlink RMS 8424S Rack Mounting Standard LCD Monitor LED Screen Broadcast Monitor
Availability: In Stock
SKU: 1 set
Regular price
$1,000.00 USD
$2,600.00
Save
$1,600.00
(61% off)
Shipping calculated at checkout.
Model Number: RMS 8424
Applicable To Brand Warranty Policy
GUARANTEED SAFE CHECKOUT
Spent $1,000.00 more for free shipping
Expected Delivery : - .
100100
RMS 8424 - $1,000.00
- RMS 8424 - $1,000.00
- RMS 8424S - $1,200.00
PRODUCT DETAILS

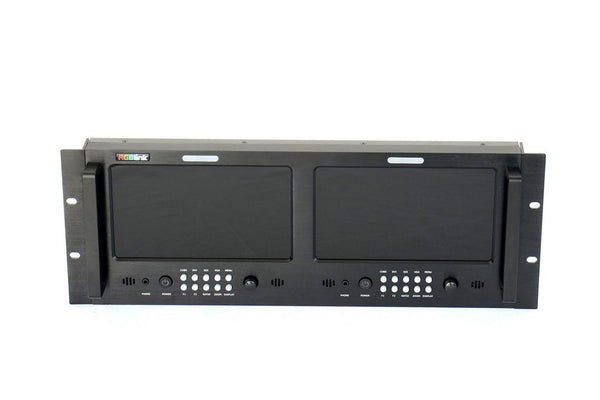

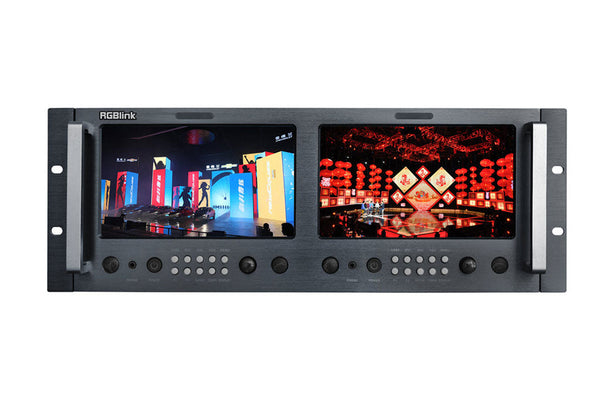

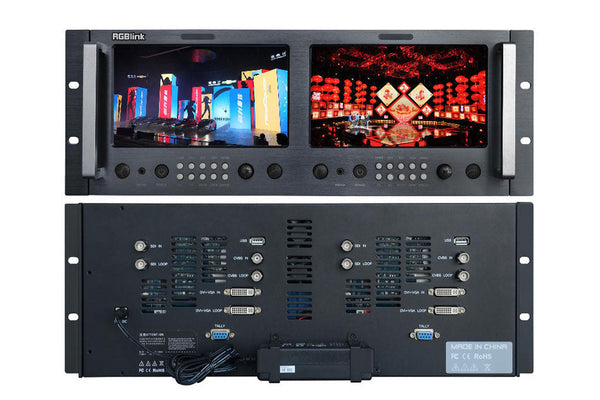

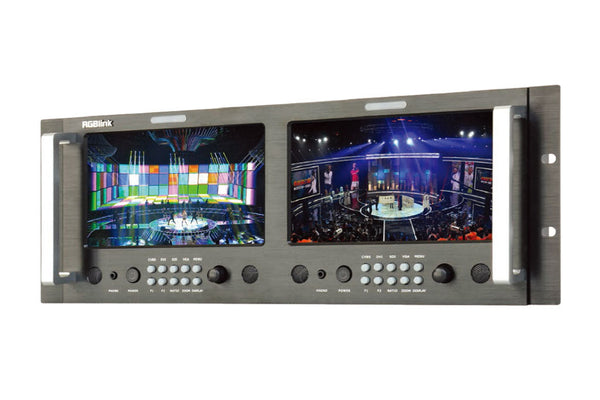

RGBlink RMS 8424S Rack Mounting Standard LCD Monitor
RMS 8424S is a 19in 4RU standard rack mounting LCD monitor, with 2 high resolution 8.4in LCD panels of independent input controlling, 1024×3(RGB)×600, and wide viewing angle.Each monitor of RMS 8424S accepts 1 3G/HD/SD-SDI, 1 DVI, 1 VGA, and 1 Composite video, each input with loop through output. Support SDI and HDMI embedded audio output.
RMS 8424S has a 2-pin pole 12V DC power connector for all the 2 LCD panels.
- Standard 4 unit rack mount size
- 8 inch LCD ×2
- 1024×3(RGB)×600
- 16:9 / 4:3 adjustable
- 3G/HD/SD-SDI, DVI, VGA, Composite video
- SDI embedded audio output via 3.5mm earphone socket
- HDMI embedded audio output via 3.5mm earphone socket
- Max input resolution 2048 x 1152 or 2560 x 816
- Underscan / Overscan switch
- Viewangle adjustable structure
Rack Mounting Standard LCD Monitor Working Diagram
RGBlink RMS 8424 S Rack Mounting Standard LCD Monitor|
nput |
1 x DVI (HDMI1.3) |
|
1 x CVBS |
|
|
1 x VGA (Via DVI+VGA IN port) |
|
|
1 x SDI (3G/HD/SD-SDI module) |
|
|
Loop Out |
1 x DVI (HDMI1.3) |
|
1 x CVBS |
|
|
1 x VGA (Via DVI+VGA LOOP port) |
|
|
1 x SDI (3G/HD/SD-SDI module) |
|
|
Net Size |
480mmx172mmx114.3mm |
|
Package size |
545mmx240mmx170mm |
|
Net weight |
3.4kg |
|
Package weight |
5.0kg |
|
Work Temperature |
0°C~40°C |
|
Relative Humidity |
10%~85% |
Further Information:
RMS 8424S
RGBlink RMS 8424S LCD Monitor Specification
RGBlink RMS 8424S LCD Monitor User Manual
