RGBlink RMS 1516S 4K Preview Monitor LCD Monitor LED Screen Broadcast Monitor
Availability: In Stock
SKU: RMS 1516S
Regular price
$700.00 USD
$2,600.00
Save
$1,900.00
(73% off)
Shipping calculated at checkout.
Applicable To Brand Warranty Policy
GUARANTEED SAFE CHECKOUT
Spent $1,000.00 more for free shipping
Expected Delivery : - .
100
PRODUCT DETAILS

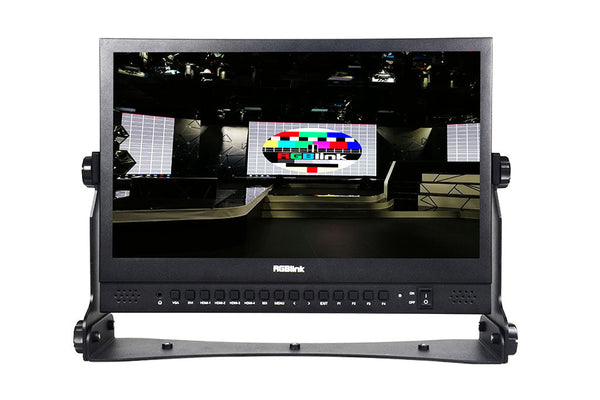

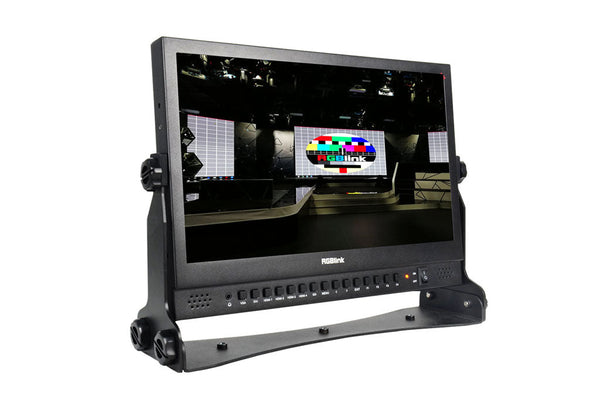

RGBlink RMS 1516S 4K LCD Monitor
Desktop or rack mounting 4K display, the RMS 1516S 15.6in LCD monitor accepts HDMI, VGA, DVI, SDI signal inputs, each with loop. Video with HDR encoding is supported and the monitor is HDCP 1.4 compliant. In additional to full screen preview of a selected signal, RMS 1516S also includes a Multiview and has on board picture adjustments including color temperature and flip/mirror.- Up to 4 pictures to display
- Zoom All
- Focus Assist
- Pixel to Pixel
- Pseudo-color
- Center Marker
- Overscan
- Ratio Marker (80%, 85%, 90%, 93%, 96%, 2.35:1)
- Rotation by 90° increment
- Marker Color (Red,Green,Blue,White)
- Monochrome display (Red, Green, Blue,Grey)
- Color Temperature Adjustment
- Image Freeze
- 3 Tally lighgt (Red, Green, Yellow)
RGBlink RMS 1516S 4K Preview LCD Monitor Working Diagram
RGBlink RMS 1516S 4K LCD Monitor

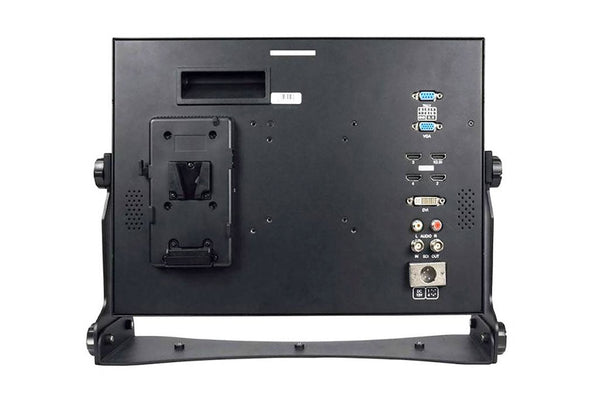

- Connectors
- Input VGA 1×DB15
- DVI 1×DVI-I
- SDI 2×BNC ( 1 In | 1 Loop)
- HDMI 4×HDMI-A
- Audio L/R 2×RCA
- Communication Tally 1×DB9
- Power 1×4Pin XLR
- Screen Size 15.6 Inch
- Native Resolution 3840x2160px
- Native Display Ratio 16：9
- Contrast 800:1
- Viewing Angle 85°/85°(L/R) 85°/85°(U/D)
- Brightness (Max) 300cd/m2
- Power Input Voltage DC 12V (via fitted universal plug-in pack)
- Max Power 18W
- Environment Temperature -10℃～50℃
- Hudmidity 10%~85%
- Physical Weight Net (Device) 2.03kg
- Dimension Net (Device) 372mm×262mm×50mm
Further Information:
RMS 1516S
RGBlink RMS 1516S LCD Monitor Specification
RGBlink RMS 1516S LCD Monitor User Manual
