Magnimage Fiber Converter OPT10-S OPT10-M EO Converter Device Fiber Interface
Availability: In Stock
SKU: OPT10-S
Regular price
$700.00 USD
$2,000.00
Save
$1,300.00
(65% off)
Shipping calculated at checkout.
Model Number: OPT10-S
Applicable To Brand Warranty Policy
GUARANTEED SAFE CHECKOUT
Spent $1,000.00 more for free shipping
Expected Delivery : - .
100100
OPT10-S - $700.00
- OPT10-S - $700.00
- OPT10-M - $700.00
PRODUCT DETAILS
Photolectric Transducer OPT10-S/M
Fiber Converter OPT10-S/M
- Super interface, stable transmission
Support 2*10G optical fiber interfaces, 10 channels gigabit Ethernet output.
- Main and backup dual use for safety
2*10G fiber optical interfaces, one as input interface, another for backup interface that can be cascaded to another device.
- Ultra-long transmission
Support LC single-mode dual-core module and LC multi-mode dual-core module Optional, single-mode dual-core transmission up to 10km(OPT10-S), multi-mode dual-core transmission up to 300m(OPT10-M). - Signal monitoring, worry-free use
By watching the signal light to grasp the signal transmission situation in time.The status of equipment use is clear at a glance, greatly improving work efficiency.
- Solution 1
Cooperating with the video controller supporting optical output.
- Solution 2
Cooperating with optical output board of 4K video wall controller.

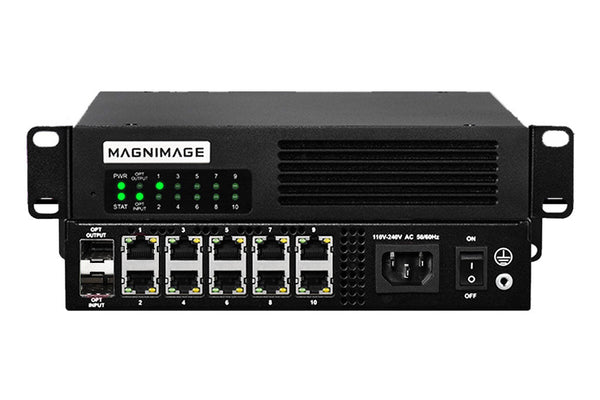

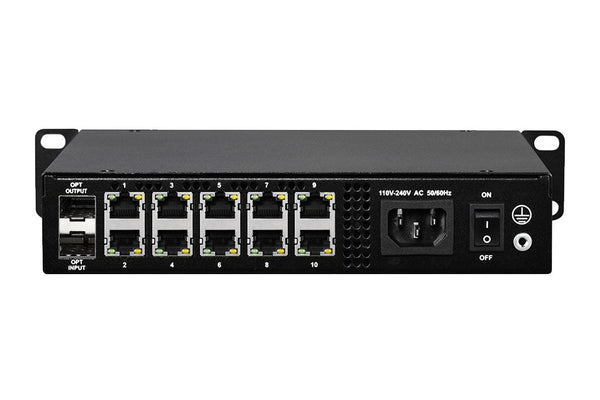

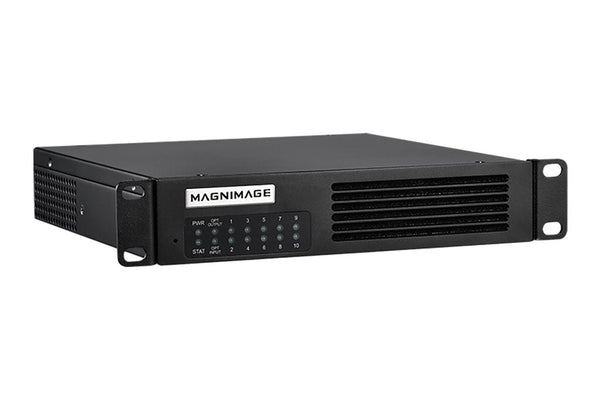

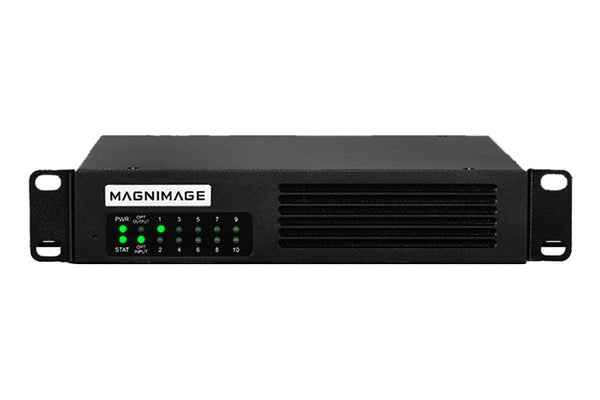

Fiber Converter Appearance
Magnimage Fiber Converter OPT10-S/M Parameters
|
Product Specification |
|
| OPT10-S | · Interface Type：LC · Applicable single-mode dual-core · Fiber optic transmission distance：10km |
| OPT10-M | · Interface Type：LC · Applicable multi-mode dual-core · Fiber optic transmission distance：300m |
Further Information:
OPT10-S/M
Magnimage Fiber Converter OPT10-S/M Specification
