Huidu LED Display Accessories HD-S108 S208 Environmental Monitoring Sensor Box
Availability: Pre-Order
Regular price
$50.00 USD
$130.00
Save
$80.00
(61% off)
Shipping calculated at checkout.
Model Number: S208
Applicable To Brand Warranty Policy
GUARANTEED SAFE CHECKOUT
Spent $1,000.00 more for free shipping
Expected Delivery : - .
00
S208 - $50.00
- S208 - $50.00
- S108
PRODUCT DETAILS
Environmental Monitoring Sensor Box HD-S208
S208 is a new and upgraded multi-functional sensor supporting all asynchronous full color control systems, which includes eight functions of temperature, humidity, brightness, PM value, wind speed, wind direction, noise and brightness. The whole set of equipment includes wind speed transmitter, wind direction transmitter, multi-functional shutter box, remote control receiver and S208 main control box.
1、 Connection Demo
The whole set of equipment includes wind speed transmitter, wind direction transmitter, multi-function shutter box, remote control receiver and S208 main control box.
2、 HD-S208 Package description

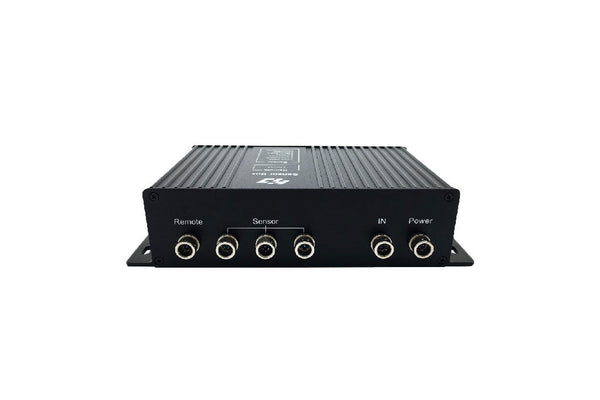

1. HD-S208 Main Control Box
Responsible for collecting the data transmitted by the sensor and connecting with the control card is the core of the whole set of equipment.
2. Wind Speed Sensor
Real-time sensing of the speed of ambient air circulation, passing data to the main control box.
3. Wind Direction Sensor
Real-time sensing of the direction of ambient air circulation, passing data to the main control box.
4. Multi-Sensor
Ability to monitor temperature, humidity, brightness, noise, and PM2.5, PM10 values and pass this data to the main control box.
5. IR recerver
Receive infrared remote control signal to adjust the brightness of the display and switch program content.

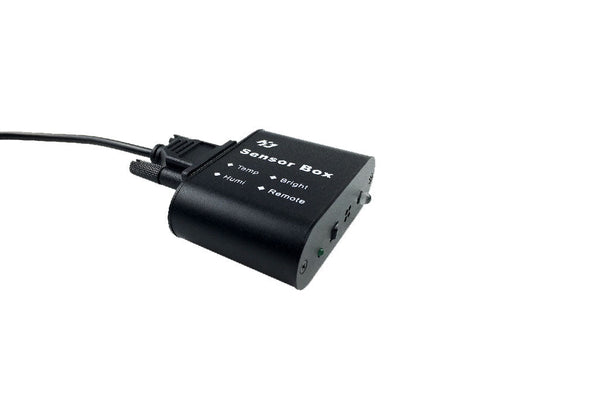

Full color sensor box HD-S108
HD-S108 supports real-time monitoring of temperature and humidity in the surrounding environment.
Further Information:
S208/S108
Huidu HD-S108 Environmental Monitoring Sensor Box Specification
Huidu HD-S208 Environmental Monitoring Sensor Box Specification
S208 is a new and upgraded multi-functional sensor supporting all asynchronous full color control systems, which includes eight functions of temperature, humidity, brightness, PM value, wind speed, wind direction, noise and brightness. The whole set of equipment includes wind speed transmitter, wind direction transmitter, multi-functional shutter box, remote control receiver and S208 main control box.
1、 Connection Demo
The whole set of equipment includes wind speed transmitter, wind direction transmitter, multi-function shutter box, remote control receiver and S208 main control box.
2、 HD-S208 Package description
1. HD-S208 Main Control Box
Responsible for collecting the data transmitted by the sensor and connecting with the control card is the core of the whole set of equipment.
2. Wind Speed Sensor
Real-time sensing of the speed of ambient air circulation, passing data to the main control box.
3. Wind Direction Sensor
Real-time sensing of the direction of ambient air circulation, passing data to the main control box.
4. Multi-Sensor
Ability to monitor temperature, humidity, brightness, noise, and PM2.5, PM10 values and pass this data to the main control box.
5. IR recerver
Receive infrared remote control signal to adjust the brightness of the display and switch program content.
Full color sensor box HD-S108
HD-S108 supports real-time monitoring of temperature and humidity in the surrounding environment.
Further Information:
S208/S108
Huidu HD-S108 Environmental Monitoring Sensor Box Specification
Huidu HD-S208 Environmental Monitoring Sensor Box Specification
