PRODUCT DETAILS
Monitoring Card MON300 Description:
-
Cabinet temperature, humidity and smoke monitoring.
-
8 power supply voltage monitoring.
-
Ribbon cable status monitoring.
-
Cabinet door open / close status monitoring.
-
4 fan speed monitoring.
-
LED error status monitoring.
-
Certification: CE, RoHS.
1) Used together with receiving card MRV320;
2) Supporting open and short circuit detection (drive IC support required);
3) Supporting flat cable fault detection;
4) Supporting cabinet humidity detection (no need to purchase extra module);
5) Supporting cabinet temperature detection (no need to purchase extra module);
6) Supporting 8-way power supply voltage detection;
7) Support 4-way fan speed detection;
8) Cabinet door open/close status detection supported;
9) Monitoring card HUB is required for LED status inspection or flat cable detection.

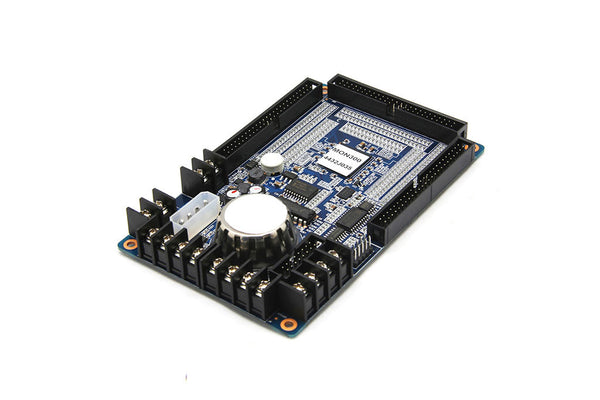

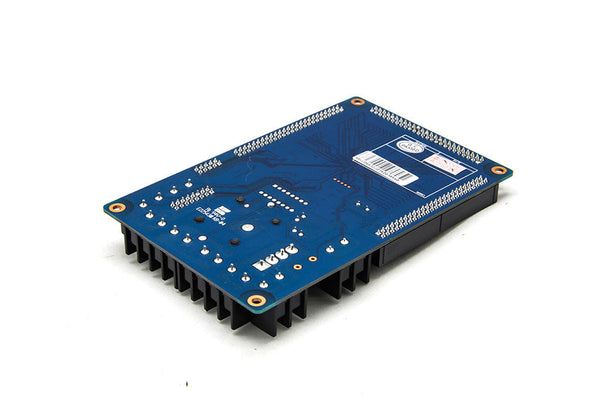

Monitoring Card Appearance
LED Sending Card Working Diagram
