NovaStar VX600 Pro All-in-One LED Display Controller & Video Processor

The NovaStar VX600 Pro is an all-in-one controller combining video processing and video control functionalities into a single device. Equipped with 6 Ethernet ports, it supports three working modes: video controller, fiber converter, and ByPass. Capable of managing up to 3.9 million pixels, the NovaStar VX600 Pro can output at a maximum width of 10,240 pixels and a height of 8,192 pixels, making it perfectly suited for controlling ultra-wide and ultra-high LED screens on-site.

The NovaStar VX600 Pro boasts powerful video signal reception and processing capabilities, supporting a maximum resolution of 4K×2K@60Hz for video input. It can handle multiple video signal inputs and includes features like 6 layers, output scaling, low latency and pixel-level brightness and chroma calibration. These functions combine to deliver outstanding image display quality.
With various control options available, the NovaStar VX600 Pro can be operated via the front panel knob, NovaLCT, Unico and VICP app, providing you with a convenient and effortless control experience.
The NovaStar VX600 Pro is housed in an industrial-grade casing, which, combined with its powerful video processing and transmission capabilities, makes it robust and well-suited for complex operational environments. The NovaStar VX600 Pro is a perfect fit for medium and high-end rental,stage control systems and fine-pitch LED screens.

• Multiple Gigabit Ethernet output ports
• Multiple input: HDMI, 3G-SDI, OPT fiber
• Three working modes: Video Controller, Fiber Converter, ByPass
• Self-Adaptive OPT & HDMI Mosaic
• Free Layout & Image Mosaic
• Low Latency Output & Output Synchronization
• Multiple Layer Display & 3D Function
• Up to 10 user-defined presets
• Pixel-level brightness and chroma calibration
• Control via NovaLCT or front panel

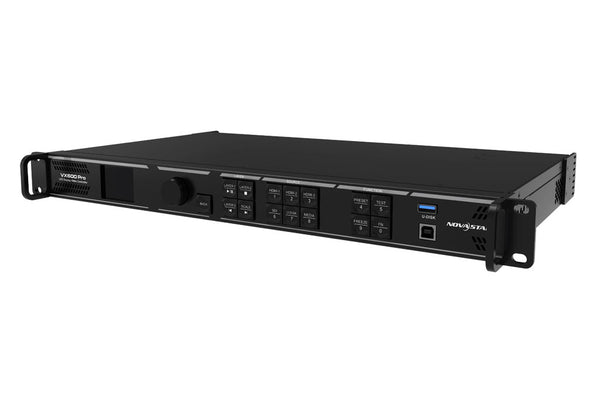

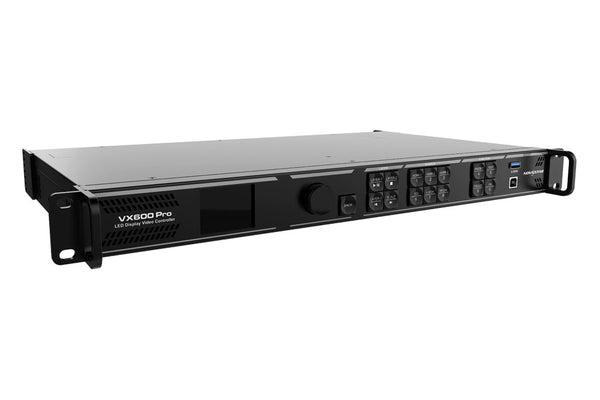

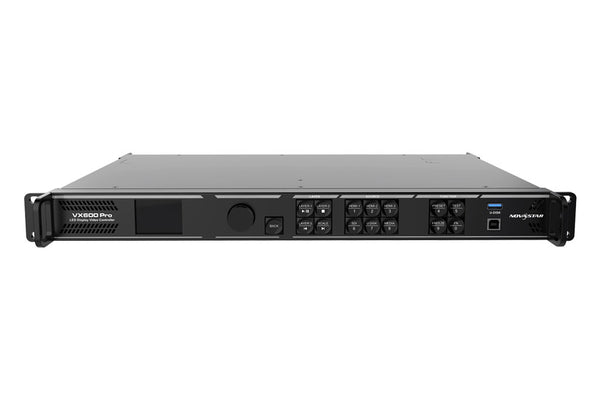

VX600 Pro LED Video processor Appearance

VX600 Pro LED Video processor Working Diagram

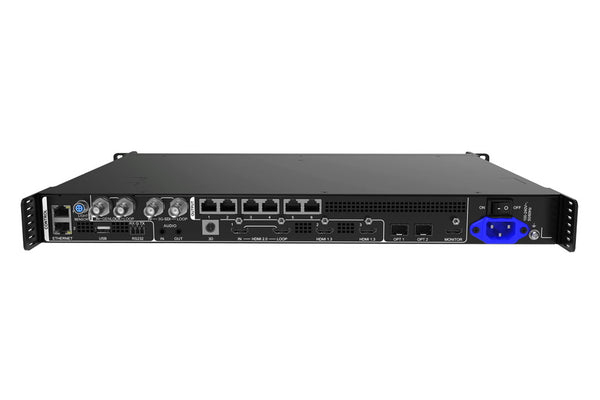

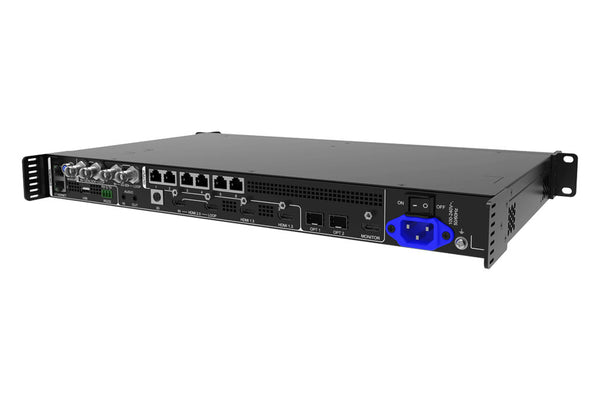

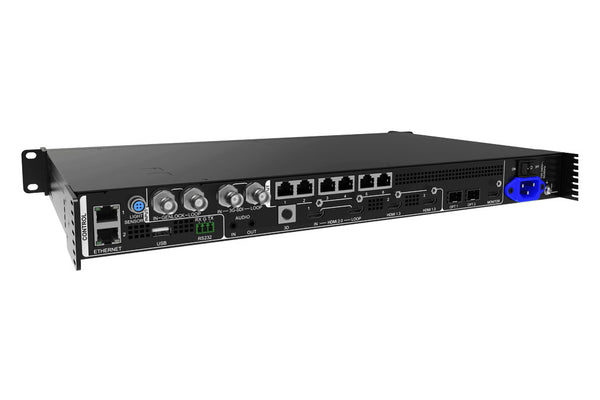

Multiple Connectors for Versatile Input and Output

• Comprehensive Range of Input Connectors
  - 1x HDMI 2.0 (IN & LOOP)
  − 2x HDMI 1.3
  − 1x 10G optical fiber port (OPT 1)
  − 1x 3G-SDI (IN & LOOP)
  − 1x USB 3.0 (Play images or videos saved in a USB drive.)
• Output Connectors
  - 6 x Gigabit Ethernet ports
  A single device supports up to 3.9 million pixels, delivering a maximum width of 10,240 pixels and a maximum height of 8192 pixels.
  − 2x Fiber outputs
  OPT 1 sends the output on Ethernet ports 1~6.
  OPT 2 copies or backs up the output on Ethernet ports 1~6.
  − 1x HDMI 1.3 For monitoring display.
  − 1x 3D connector
  Directly connect a third-party 3D emitter.

Advanced Features

• Self-adaptive OPT 1 for either video input or sending card output
  Thanks to the self-adaptive design, OPT 1 can be used as either an input or output
  connector, depending on its connected device.
• Audio Input and Output
  − Audio input accompanied with HDMI sources
  − 3.5 mm independent audio input and output
  − Adjustable output volume

• Free topology
  Flexible screen configuration without rectangle restriction on a single Ethernet port. The maximum circumscribed rectangle of the large screen loaded by the device must be within the device loading capacity.

• Low Latency Output
  Enable low latency feature and ByPass mode to reduce delay to less than 1ms.

• Output Synchronization
  Sync output images of all cascaded units using an internal input source or external Genlock.
• EDID Management
  Import and export EDID files for flexible configuration.
• Easy Preset Saving and Loading:
  Supports up to 256 user-defined presets.
  Load a preset with a single button press.
  Save, overwrite, and delete presets.
  Preview the layer layout saved in presets.
  Synchronize presets to Unico.
• Multiple Layer Display
  Supports 6*2K×1K layer resources.
  Users can create layers in three different specifications - 4K×2K, 4K×1K, and 2K×1K.
  These layers will use 4x, 2x, and 1x 2K layer resources respectively, depending on the capacity of the input source connector used to open the layers.
  Adjustable layer size, position, priority, and aspect ratio.
• OSD Settings
  Supports one OSD display.
  Import and save up to 6 OSDs.
• Supported OSD types
  text, image, digital clock, weather, and table.
• BKG Settings
  Supports pure color or image backgrounds.
• 3D Function
  Connect EMT200 3D emitter to the Ethernet port and use compatible 3D glasses.
  Connect third-party 3D emitter to the 3D connector for a 3D visual experience.
  Note: Enabling 3D function will halve the device output capacity.
• Personalized Image Scaling:
  Supports full screen, pixel to pixel, and custom scaling modes.
• Powerful Video Processing:
  Utilizes SuperView III image quality processing technologies for seamless output scaling.
  One-click full screen display.

Comparison Table:  VX Pro Series
