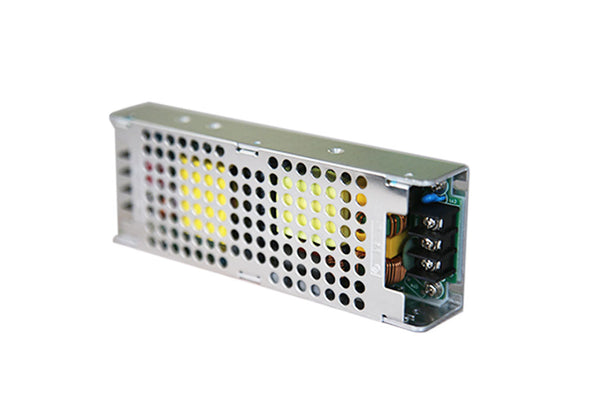

CL LED Displays Power Supply AS7-200-5 200W LED Power Supply

PRODUCT DETAILS

CL LED Displays Power Supply CL-AS7-200-5 Features:

Input Parameter:

  • Input Voltage Range: 180~264Vac
  • Input Frequency Range:  47-63HZ
  • AC Current: ≤3.0A(200Vac, full load)
  • Input inrush current<80A(220Vac input, 25℃  cold start)
  • Empty power consumption<5W (200-264Vac input)

Output Parameter:

  • Dc Voltage Range:4.5 V
  • Rated Current: 35A( NO Auxiliary heat sink), 40A(installed an Auxiliary heat sink between the power supply bottom case and LED screen case)
  • Max power: 180W
  • Rise time<50mS
  • Ripple & Noise: ≤300mVp-P
  • Efficiency (Typ):≥88.5% Vin=220Vac,25℃, rated load
  • Voltage Tolerance:±2%
  • Linear adjustment: ±1%
  • Load Adjustment: ±2%
  • Power on delay time<5S

Protection:

  • OCP(55-75A)
  • OTP
  • SCP(Hiccup mode, auto recovery after fault condition is removed)

Safety&EMC:

  • EN60950-1,EN55022
  • Hi-pot: I/P-O/P: 2.0KVAC/ 10mA/ 60S,I/P-FG:1.5KVAC/ 10mA/ 60S ,O/P-F/G: 500Vdc/10mA/1min
  • Isolation Resistance: 100MΩ Max/ 500VDC/ 3S
  • Leakage current<3.5mA(AC240V I/P-FG);  <0.25mA(I/P-O/P)

Others:

  • Working Temperature:-20℃ ~ +70℃
  • Cooling: ventilate by air convection
  • Working Humidity:5%~90%RH
  • Storage temperature: -20℃~+85℃
  • Dimension (L*W*H):167*59*31mm
  • Carton Dimension: 52*37.5*24CM
  • Packing:40PCS/21.5KG/0.04CBM, in white paper box
  • MTBF:50K hours (MIL-HDBK-217F (25℃ )
