- CL-AS2-400-5 - $45.00
- CL-AS2-400-4.5 - $45.00
- CL-AS2-400-4.2 - $45.00
PRODUCT DETAILS

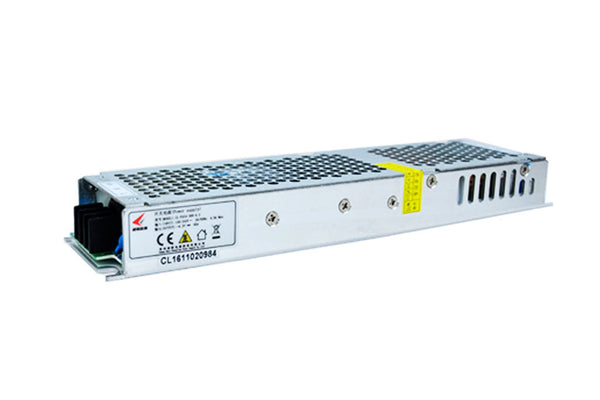

CL-AS2-400-5 5V80A Standard Size LED Power Supply Features:
Model NO:
- CL-AS2-400-5, 5V 80A 400W
- CL-AS2-400-4.5, 4.5V 80A
- CL-AS2-400-4.2, 4.2V 80A
Input Parameter:
- Input Voltage Range: 190～250Vac
- Input Frequency Range: 50/60HZ
- AC Current: ≤3.5A(AC220V)/6A（AC110V）
- Input inrush current<80A(220Vac input, 25℃ cold start)
Output Parameter:
- Dc Voltage Range:5 V
- Rated Current: 80A
- Max power:400W
- Ripple & Noise: ≤300mVp-P
- Efficiency (Typ):≥88% Vin=220Vac,25℃, rated load
- Voltage Tolerance:±2%
- Power on delay time<2S
Protection：
- OCP(>90A)
- SCP(Hiccup, auto recovery after fault condition is removed)
- OVP
- OTP
Safety&EMC：
- EN60950-1,EN55022
- Hi-pot: I/P-O/P: 3.0KVAC/ 10mA/ 60S,I/P-FG:1.5KVAC/ 10mA/ 60S ,O/P-F/G: 500Vdc/10mA/1min
- Isolation Resistance: 100MΩ Max/ 500VDC/ 3S
- Leakage current<0.75mA(AC240V)
Others:
- Working Temperature:-30℃ ～ +70℃
- Cooling: ventilate by Air convection
- Working Humidity:5%～90%RH
- Storage temperature: -20℃～+85℃
- Dimension (L*W*H):252×64×30mm
- Carton Dimension: 42.3*27.3*27.5cm
- Packing: 20PCS/ 18KG/CTN/0.03CBM
- MTBF:50K hours (MIL-HDBK-217F (25 )
