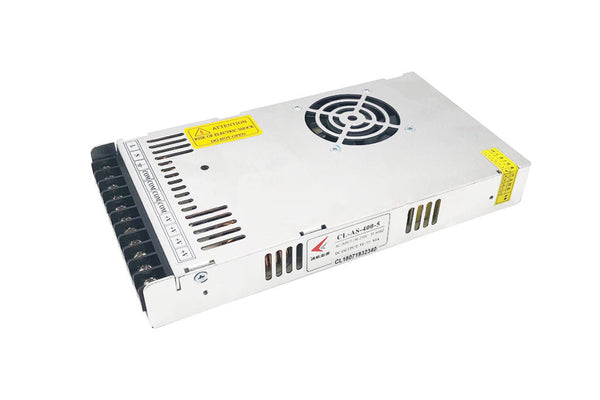

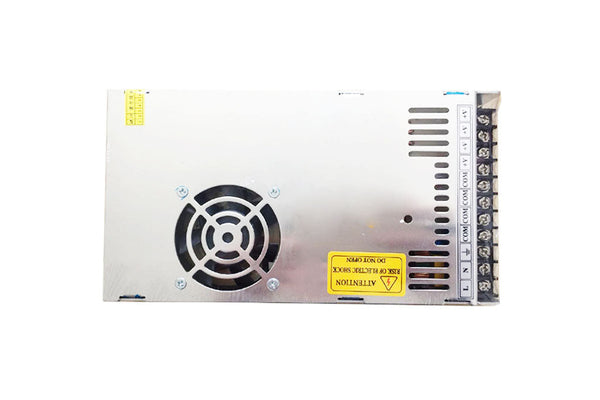

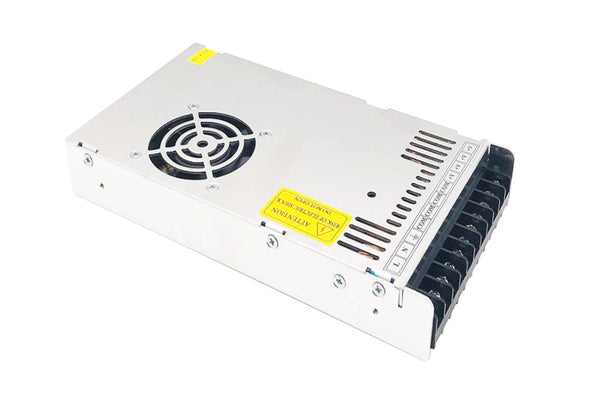

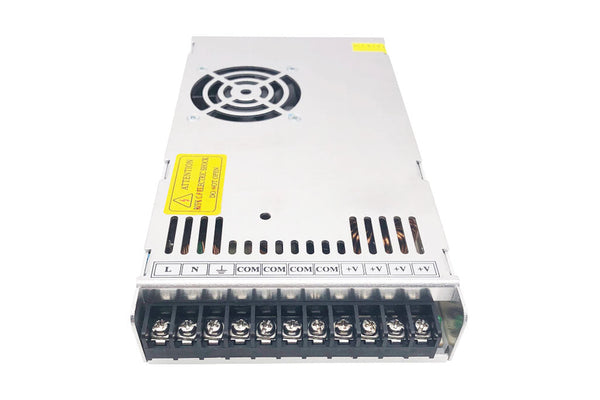

CL LED Displays Power Supply AS-400-5 5V80A Standard Size LED Power Supply

PRODUCT DETAILS

CL-AS-400-5 5V80A Standard Size LED Power Supply Features:

Input Parameter:

  • Input Voltage Range: 190~250Vac
  • Input Frequency Range:  50/60HZ
  • AC Current: ≤3.5A(AC220V)/6A(AC110V)
  • Input inrush current<80A(220Vac input, 25℃  cold start)

Output Parameter:

  • Dc Voltage Range:5 V
  • Rated Current: 80A
  • Max power:400W
  • Ripple & Noise: ≤150mVp-P
  • Efficiency (Typ):≥83% Vin=220Vac,25℃, rated load
  • Voltage Tolerance:±2%
  • Power on delay time<2S

Protection:

  • OCP(>89A)
  • SCP(Hiccup, auto recovery after fault condition is removed)

Safety&EMC:

  • EN60950-1,EN55022
  • Hi-pot: I/P-O/P: 3.0KVAC/ 10mA/ 60S,I/P-FG:1.5KVAC/ 10mA/ 60S ,O/P-F/G: 500Vdc/10mA/1min
  • Isolation Resistance: 100MΩ Max/ 500VDC/ 3S
  • Leakage current<0.75mA(AC240V)

Others:

  • Working Temperature:-30℃ ~ +70℃
  • Cooling: ventilate by DC Fan
  • Working Humidity:5%~90%RH
  • Storage temperature: -20℃~+85℃
  • Dimension (L*W*H):217×117×30mm
  • Carton Dimension: 42.3*27.3*27.5cm
  • Packing: 20PCS/ 18KG/CTN/0.03CBM
  • MTBF:50K hours (MIL-HDBK-217F (25 )
